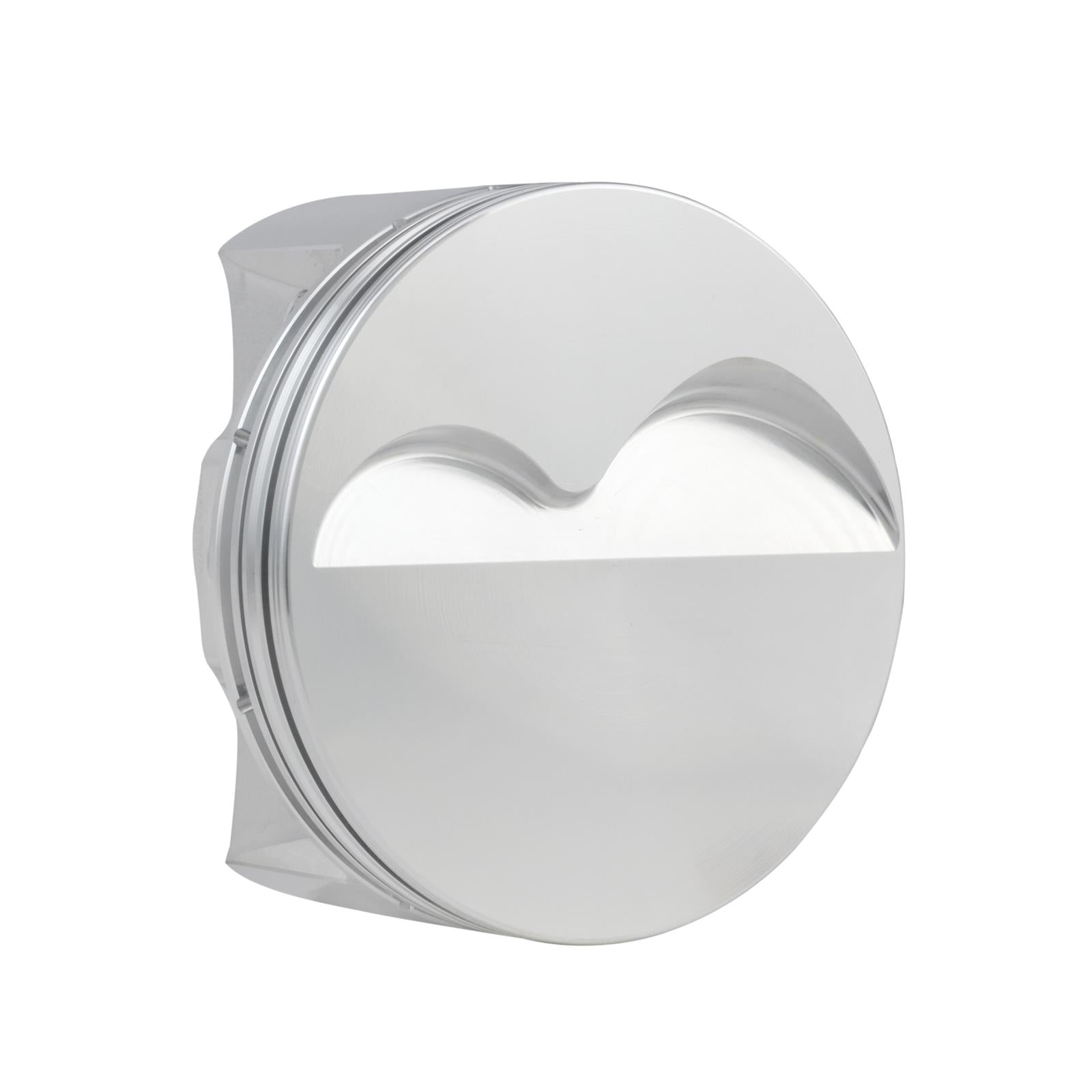

CP Pistons BMW Piston and Ring Kits SC7700-4

CP Pistons offers BMW piston and ring kits for a variety of 4- and 6-cylinder vehicles. These dish-style forged aluminum replacement pistons can be used in turbo, supercharger, and nitrous applications. The rings are made from steel, cast iron, and nitride coated carbon steel. All parts are manufactured to factory specs to ensure proper fit and long-lasting performance. Order the pistons/rings individually or in a set of 4 or 6.Brand: CP-Carrillo
Manufacturer's Part Number: SC7700-4
Part Type: Pistons
Product Line: CP Pistons BMW Piston and Ring Kits
HP Direct Part Number: CNN-SC7700-4
Piston Rings Included: Yes
Bore (in.): 3.307 in.
Bore (mm): 84.000mm
Stroke: 89.60mm
Engine Stroke Type: Stock
Actual Engine Displacement: 2.0L/1997cc
Rod Length: 144.340mm
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.276 in.
Piston Head Volume (cc): +9.70cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.866 in.
Piston Ring Thickness: 1.20mm x 1.20mm x 2.00mm
File Fit: No
Gapless: No
Top Ring Thickness: 1.2mm
Top Ring Material: Steel
Top Ring Facing Material: PVD
Second Ring Thickness: 1.2mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 2.0mm
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Nitride
Oil Ring Tension: Light
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Can be used in turbo, supercharger, and nitrous applications.
