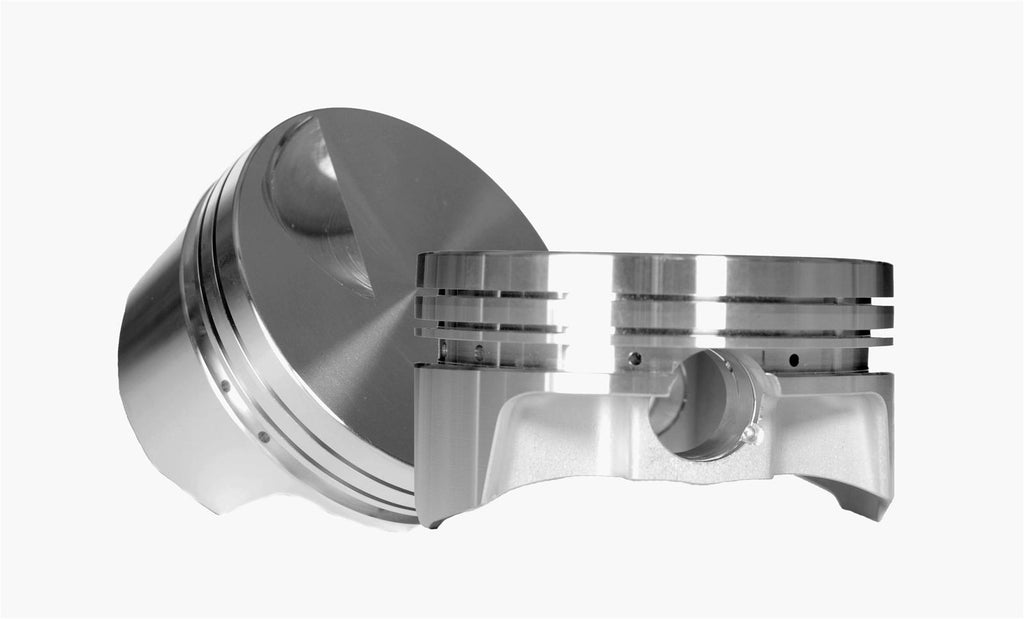

CP Pistons Big Block Chevy Dome Pistons SS5440

CP Pistons Big Block Chevy dome pistons are as good as they come. CP Pistons was founded to service the needs of those with the desire to build engines of the highest quality and technology. With the use of proprietary tooling, dedicated cutters, and unique fixtures, their state-of-the-art equipment produces superior pistons that will not compromise your expectations. Their climate-controlled inspection department is the most advanced in the industry and is outfitted with computerized electronic equipment specifically designed for their needs. Each piston is engineered using sophisticated computer modeling for optimum designs, while their 5-axis machining capability enables them to create pistons for many applications.

Additional features include:

* Radius dome and valve relief
* Double pin oilers, force fed from oil ring
* Pick lock grooves for easy lock removal
* Custom skirt cam and barrel shapes
* Balanced to plus or minus 1 gram
* Wrist pins and pin fittings included at no cost
* Accumulator and anti-detonation grooves included
* Fully CNC-machinedBrand: CP-Carrillo
Manufacturer's Part Number: SS5440
Part Type: Pistons
Product Line: CP Pistons Big Block Chevy Dome Pistons
HP Direct Part Number: CNN-SS5440
Piston Rings Included: No
Bore (in.): 4.600 in.
Bore (mm): 116.840mm
Stroke: 4.375 in.
Engine Stroke Type: Stroked
Rod Length: 6.535 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.060 in.
Dome Height (in.): 0.580 in.
Piston Head Volume (cc): -46.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Supplied with double spiral locks.
