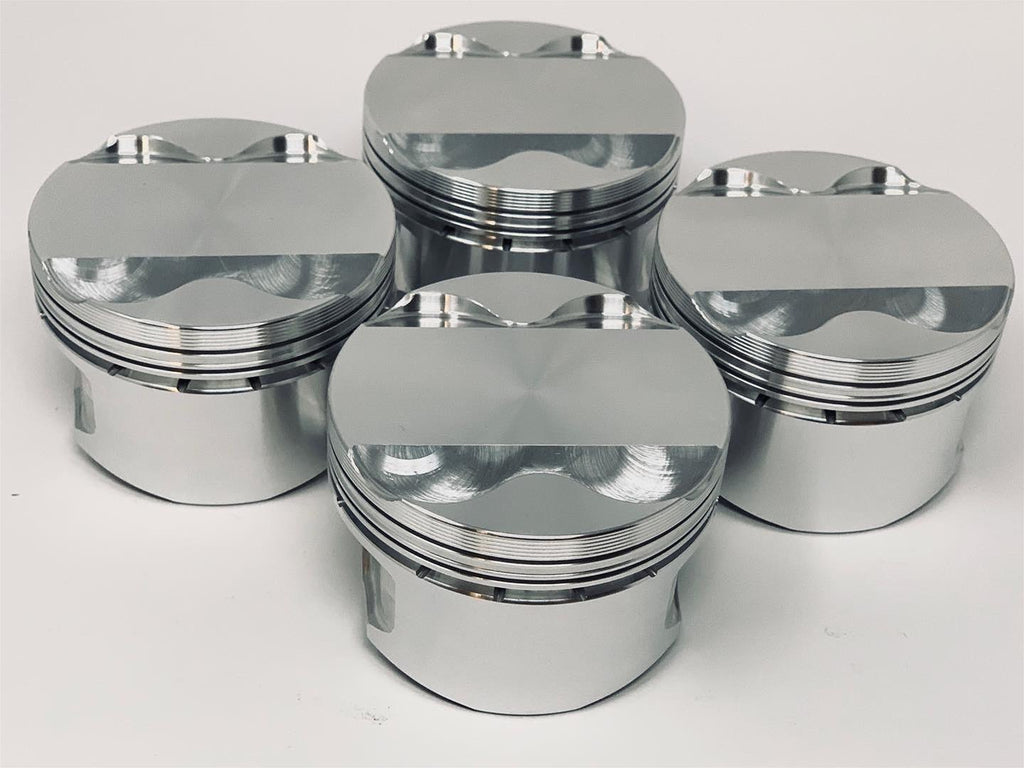

CP Pistons Arias Piston and Ring Kits A3730750

In 1969, Arias Pistons was started and forged with a reputation for power for over 40 years. In 2017 CP-Carrillo acquired Arias Pistons to continue their legacy.

CP Pistons Arias piston and ring kits deliver lightweight, high-strength construction and excellent performance. The pistons are forged from high-tensile strength 4032 or 2618 billet materials with CNC-machined working surfaces, optimized crowns for efficient combustion, and diamond-turned ellipsoidal skirt profiles. Arias piston kits are available in many different bores and piston styles, and will include quality rings, wrist pins, and retainers. Make your choice from the extensive list of Arias piston and ring kits offered by CP Pistons.
Brand: CP-Carrillo
Manufacturer's Part Number: A3730750
Part Type: Pistons
Product Line: CP Pistons Arias Piston and Ring Kits
HP Direct Part Number: CNN-A3730750
Piston Rings Included: Yes
Bore (in.): 2.972 in.
Bore (mm): 75.500mm
Stroke: 84.70mm
Engine Stroke Type: Stock
Actual Engine Displacement: 1.5L/1517cc
Rod Length: 5.543 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.088 in.
Piston Head Volume (cc): -1.52cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.708 in.
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Top Ring Facing Material: Gas nitrided
Second Ring Thickness: 1.2mm
Second Ring Material: Ductile iron
Second Ring Facing Material: Nitride
Oil Ring Thickness: 2.8mm
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Nitride
Oil Ring Tension: Standard
Remanufactured: No
Quantity: Sold as a set of 4.
