CP Pistons Arias Piston and Ring Kits A1530212

In 1969, Arias Pistons was started and forged with a reputation for power for over 40 years. In 2017 CP-Carrillo acquired Arias Pistons to continue their legacy.

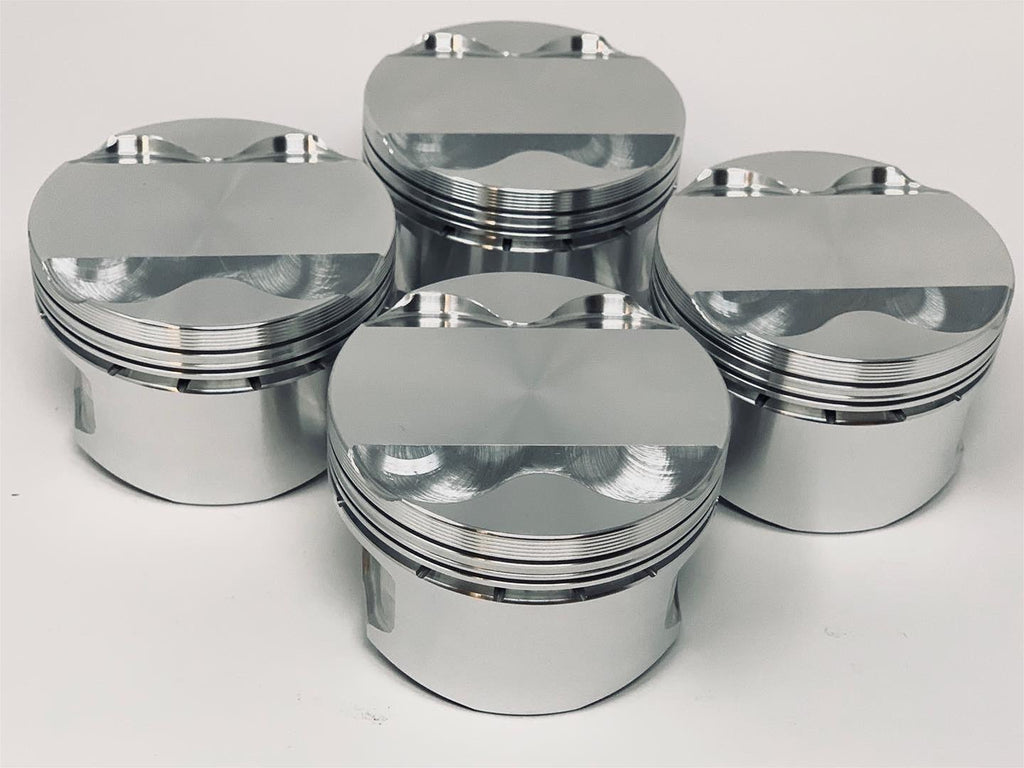

CP Pistons Arias piston and ring kits deliver lightweight, high-strength construction and excellent performance. The pistons are forged from high-tensile strength 4032 or 2618 billet materials with CNC-machined working surfaces, optimized crowns for efficient combustion, and diamond-turned ellipsoidal skirt profiles. Arias piston kits are available in many different bores and piston styles, and will include quality rings, wrist pins, and retainers. Make your choice from the extensive list of Arias piston and ring kits offered by CP Pistons.
Brand: CP-Carrillo
Manufacturer's Part Number: A1530212
Part Type: Pistons
Product Line: CP Pistons Arias Piston and Ring Kits
HP Direct Part Number: CNN-A1530212
Piston Rings Included: Yes
Bore (in.): 4.375 in.
Bore (mm): 111.125mm
Stroke: 4.500 in.
Engine Stroke Type: Stroked
Actual Engine Displacement: 8.8L/541
Rod Length: 7.076 in.
Piston Style: Dome, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.428 in.
Piston Head Volume (cc): -79.83cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 1.094 in.
Piston Ring Thickness: 5/64 in. x 5/64 in. x 3/16 in.
File Fit: No
Gapless: No
Top Ring Thickness: 5/64 in.
Top Ring Material: Steel
Top Ring Facing Material: Plasma-moly
Second Ring Thickness: 5/64 in.
Second Ring Material: Steel
Second Ring Facing Material: Phosphate coated
Oil Ring Thickness: 3/16 in.
Oil Ring Tension: Standard
Remanufactured: No
Quantity: Sold as a set of 8.
