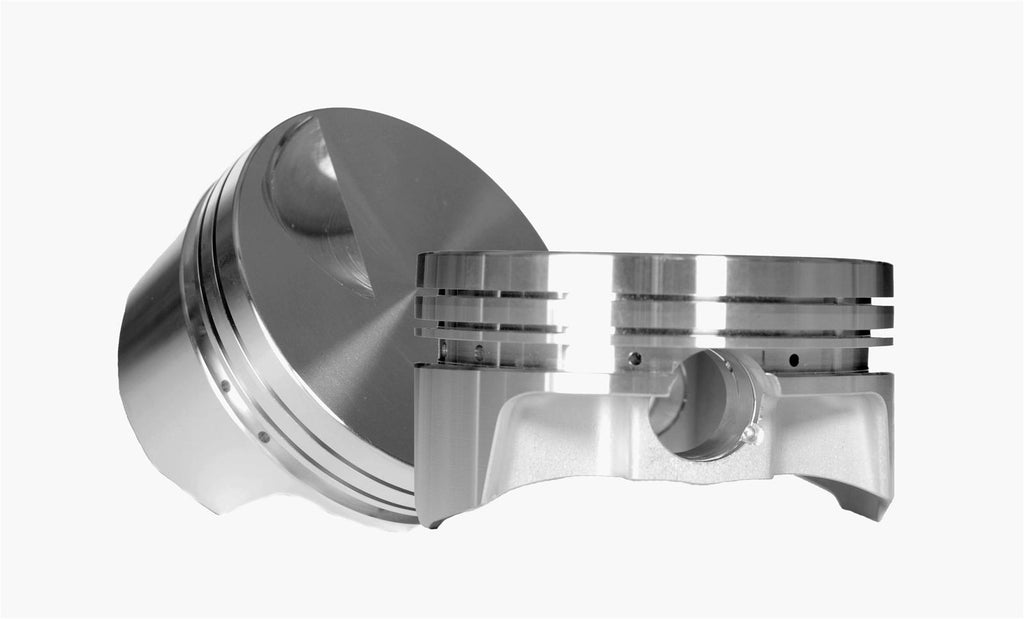

CP Pistons 400 Chevy Brodix-12 Dome Pistons S2222

CP Pistons 400 Chevy Brodix-12 dome pistons are built for all-out performance. These pistons use a radius valve relief and a radius dome to increase flow and compression. Their double-pin oilers are fed from the oil ring, keeping the wrist pins smooth and cool when the rpm starts turning up.

Additional features:

* Accumulator groove
* Dedicated right and left hand forging
* Wrist pins and pin-fittings
* Pick lock grooves for easy lock removal
* Fully CNC-machined designBrand: CP-Carrillo
Manufacturer's Part Number: S2222
Part Type: Pistons
Product Line: CP Pistons 400 Chevy Brodix-12 Dome Pistons
HP Direct Part Number: CNN-S2222
Piston Rings Included: No
Bore (in.): 4.135 in.
Bore (mm): 105.029mm
Stroke: 3.800 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.100 in.
Dome Height (in.): 0.175 in.
Piston Head Volume (cc): -1.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Supplied with double spiral locks. Rail supports included. Will accommodate .70-.125 V.R spacing.
