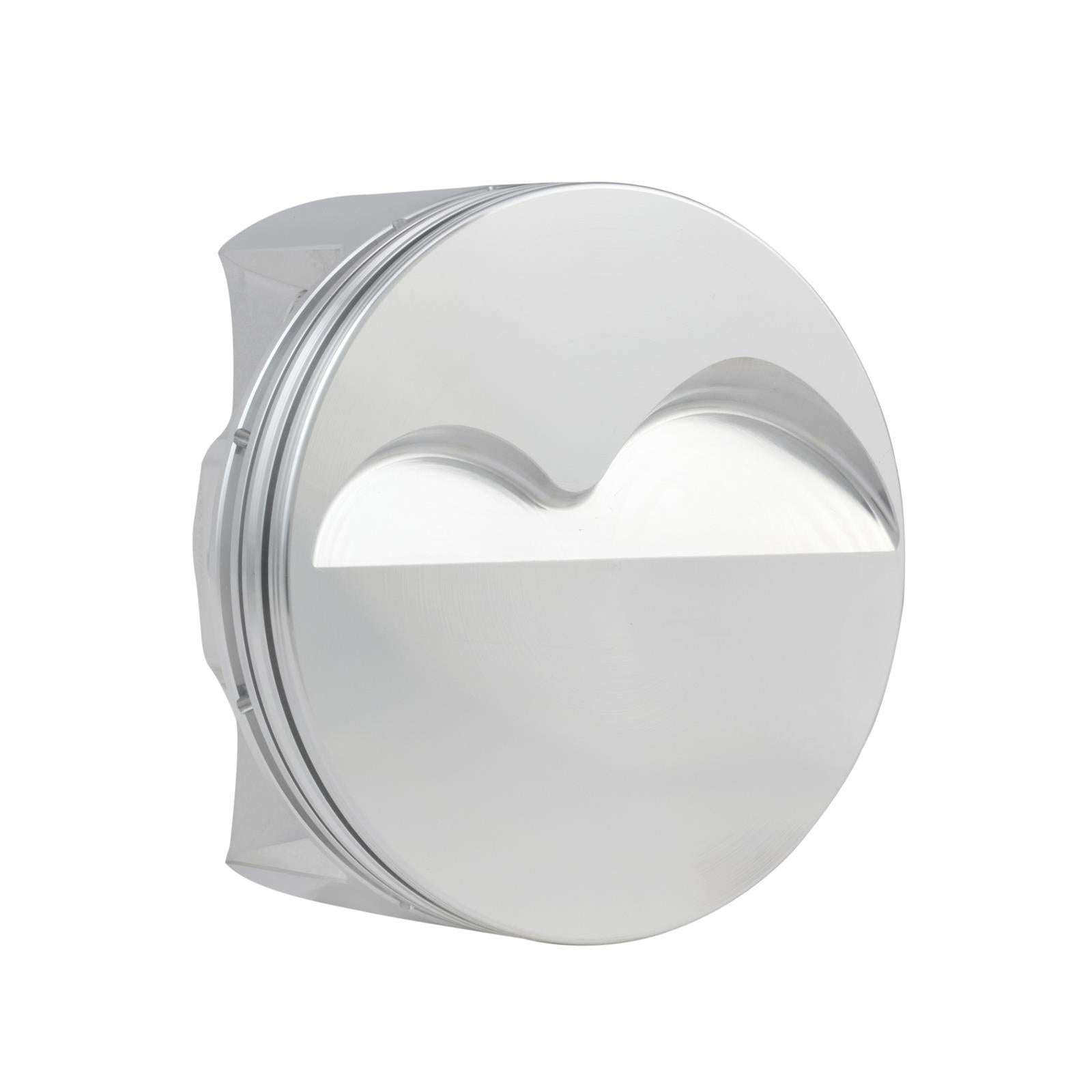

CP Pistons 360 SBC Sprint Pistons S1368-8

CP Pistons 360 SBC Sprint pistons are balanced to +/-1 gram, never letting you down. They are designed for backcut rings and Brodix Spec heads. These 360 SBC Sprint pistons have accumulator and anti-detonation grooves, custom skirt cam and barrel shapes, pick lock grooves for easy lock removal, dedicated left and right hand forging, and they are fully CNC-machined. Also included are chamfered pins and wire locks.Brand: CP-Carrillo
Manufacturer's Part Number: S1368-8
Part Type: Pistons
Product Line: CP Pistons 360 SBC Sprint Pistons
HP Direct Part Number: CNN-S1368-8
Piston Rings Included: No
Bore (in.): 4.140 in.
Bore (mm): 105.156mm
Stroke: 3.335 in.
Engine Stroke Type: De-Stroked
Rod Length: 6.000 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.335 in.
Dome Height (in.): 0.515 in.
Piston Head Volume (cc): -12.50cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1.20mm x 1.20mm x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Designed for use with Brodix ASCS and Spec. cylinder heads. Pistons have dedicated left and right forgings.
