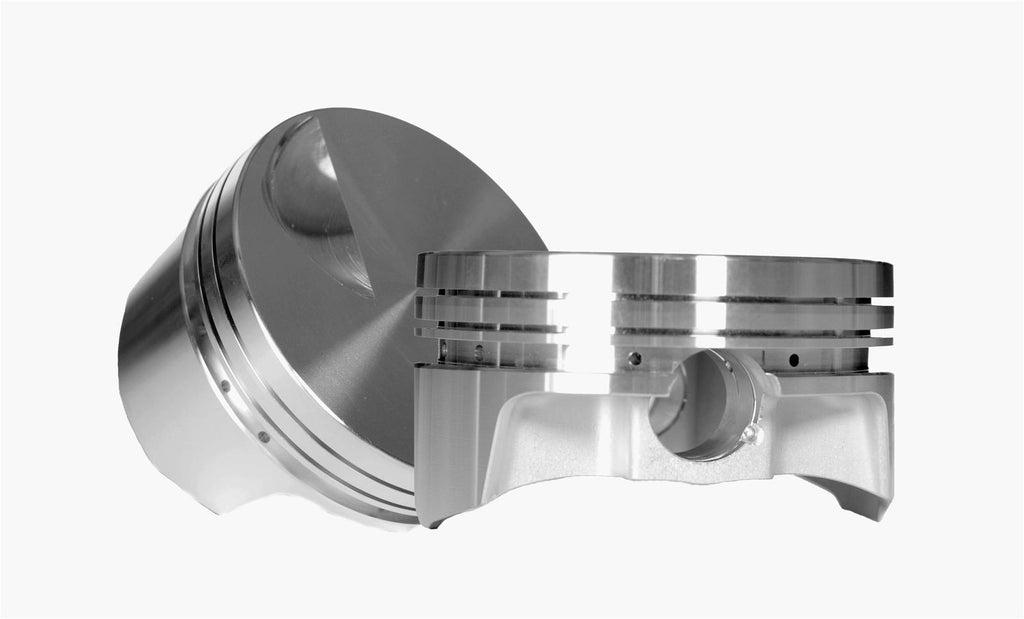

CP Pistons 350 Chevy Late Model Stock Pistons S1010

Lightweight forgings with exclusive machining techniques and processes give CP Pistons late model stock 350 Chevy pistons a perfect design for 2-barrel applications. Balanced to within +/-1 gram, these stock 350 Chevy pistons come pin-fitted with wrist pins and double spiral locks. Double pin oilers provide twice the oil, accumulator grooves collect excess blowby, and their durable, optimum skirt shape offers tighter clearances, less noise, a better ring seal, and more power! These pistons are available with or without gas ports. CP Pistons is dedicated to producing high-quality racing pistons using cutting-edge technology and their extensive experience in piston design.Brand: CP-Carrillo
Manufacturer's Part Number: S1010
Part Type: Pistons
Product Line: CP Pistons 350 Chevy Late Model Stock Pistons
HP Direct Part Number: CNN-S1010
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.500 in.
Engine Stroke Type: Stroked
Rod Length: 6.200 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.050 in.
Piston Head Volume (cc): +2.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 0.043 in. x 1.50mm x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Gas ported design. Supplied with double spiral locks. .010 deck clearance with 3.480 stroke.
