CP Pistons 350 Chevy Flat-Top X-Style Pistons S1700

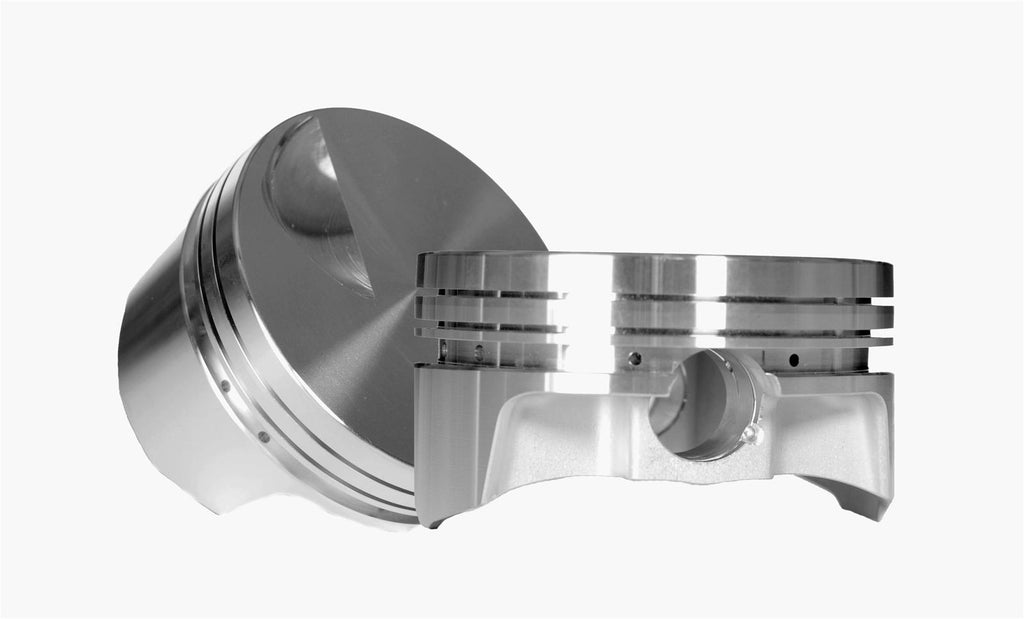

Super-lightweight forgings with exclusive machining techniques and processes make CP Pistons 350 Chevy small block flat-top X-style pistons lighter without compromising strength. These aluminum X-style 350 Chevy pistons are designed for shorter wrist pins, adding strength and weight savings. Constant pressure grooves keep the gas ports clear of carbon buildup and accumulator grooves collect excess blowby, while anti-detonation grooves limit piston cylinder contact during high-temperature and rpm conditions. These pistons include chamfered pins and wire locks, plus their durable, optimum skirt shape offers tighter clearances, less noise, a better ring seal, and more power! Pistons are available in a 2-barrel design for late model stock Chevys, milled heads, and heavy-duty applications. CP Pistons is dedicated to producing high-quality racing pistons using cutting-edge technology and their extensive experience in piston design.Brand: CP-Carrillo
Manufacturer's Part Number: S1700
Part Type: Pistons
Product Line: CP Pistons 350 Chevy Flat-Top X-Style Pistons
HP Direct Part Number: CNN-S1700
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.500 in.
Engine Stroke Type: Stroked
Rod Length: 6.250 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.000 in.
Piston Head Volume (cc): +2.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Supplied with double spiral locks. .010 deck clearance with 3.480 stroke.
