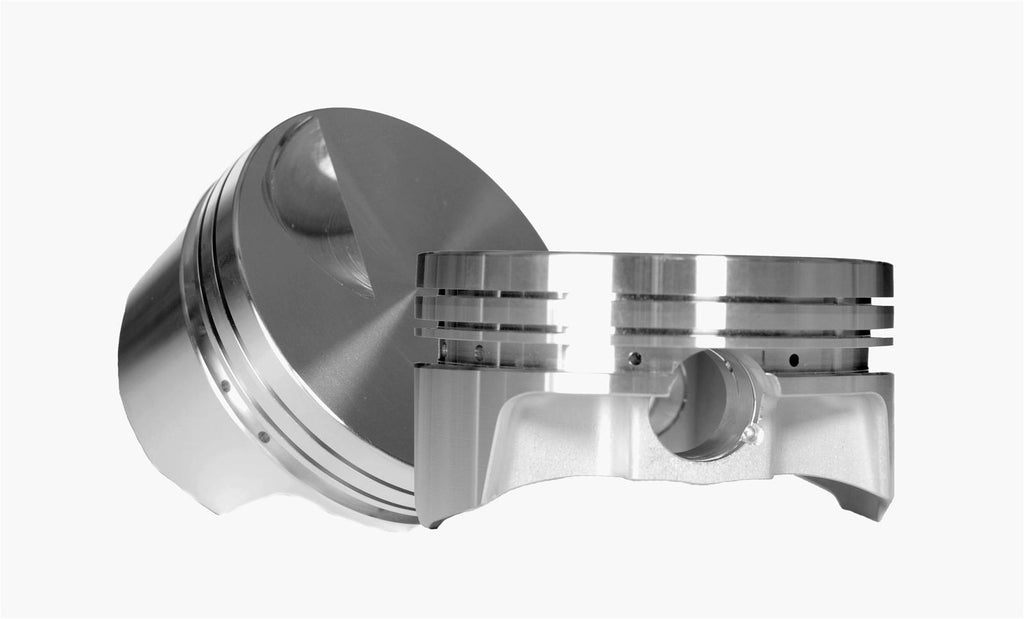

CP Pistons 350 Chevy 23 Degree Dome Pistons S1304

Choose CP Pistons. Why? Lightweight hollow dome forgings make CP Pistons 350 Chevy 23 degree dome pistons suitable for angle-milled heads. Fully CNC-machined and balanced to within +/-1 gram, these pistons come pin-fitted with wrist pins and double spiral locks. Double pin oilers provide twice the oil, radius dome and valve reliefs improve flow, and the durable, optimum skirt shape offers tighter clearances, less noise, a better ring seal, and more power! These pistons are available with or without rail supports. CP Pistons is dedicated to producing high-quality racing pistons using cutting-edge technology and their extensive experience in piston design. Many have chosen 350 Chevy 23 degree dome pistons from CP Pistons--shouldn't you?Brand: CP-Carrillo
Manufacturer's Part Number: S1304
Part Type: Pistons
Product Line: CP Pistons 350 Chevy 23 Degree Dome Pistons
HP Direct Part Number: CNN-S1304
Piston Rings Included: No
Bore (in.): 4.060 in.
Bore (mm): 103.124mm
Stroke: 3.500 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.250 in.
Dome Height (in.): 0.450 in.
Piston Head Volume (cc): -13.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Supplied with double spiral locks. .010 deck clearance with 3.480 stroke.
