CP Pistons 305 SBC Sprint Pistons S2030

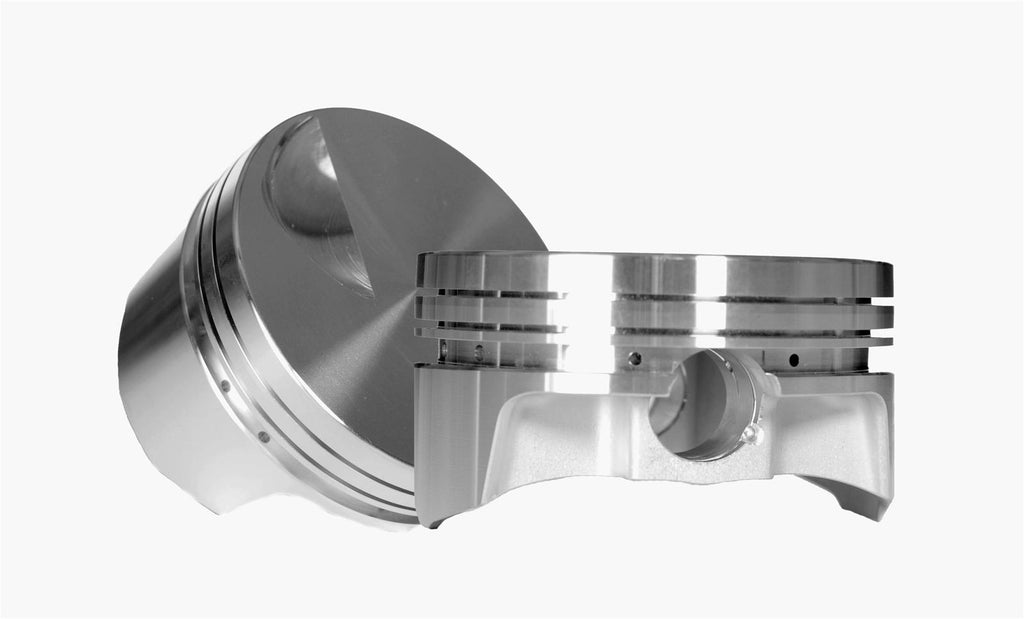

CP-Carrillo offers pistons for a variety of vehicles, including Chevrolet 305 SBC Sprint engine applications. These forged aluminum flat-top replacements feature a lightweight design, chamfered pins and wire locks, gas ports and cp grooves, accumulator and anti-detonation grooves. A lightweight metric ring pack is included. The pistons are available in different bore sizes, rod length, and compression height. Order individually or in a set of eight.Brand: CP-Carrillo
Manufacturer's Part Number: S2030
Part Type: Pistons
Product Line: CP Pistons 305 SBC Sprint Pistons
HP Direct Part Number: CNN-S2030
Piston Rings Included: Yes
Bore (in.): 3.766 in.
Bore (mm): 95.656mm
Stroke: 3.500 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.250 in.
Piston Head Volume (cc): +3.10cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1.50mm x 1.50mm x 4.00mm
File Fit: No
Gapless: No
Top Ring Thickness: 1.5mm
Second Ring Thickness: 1.5mm
Oil Ring Thickness: 4.0mm
Remanufactured: No
Quantity: Sold individually.
