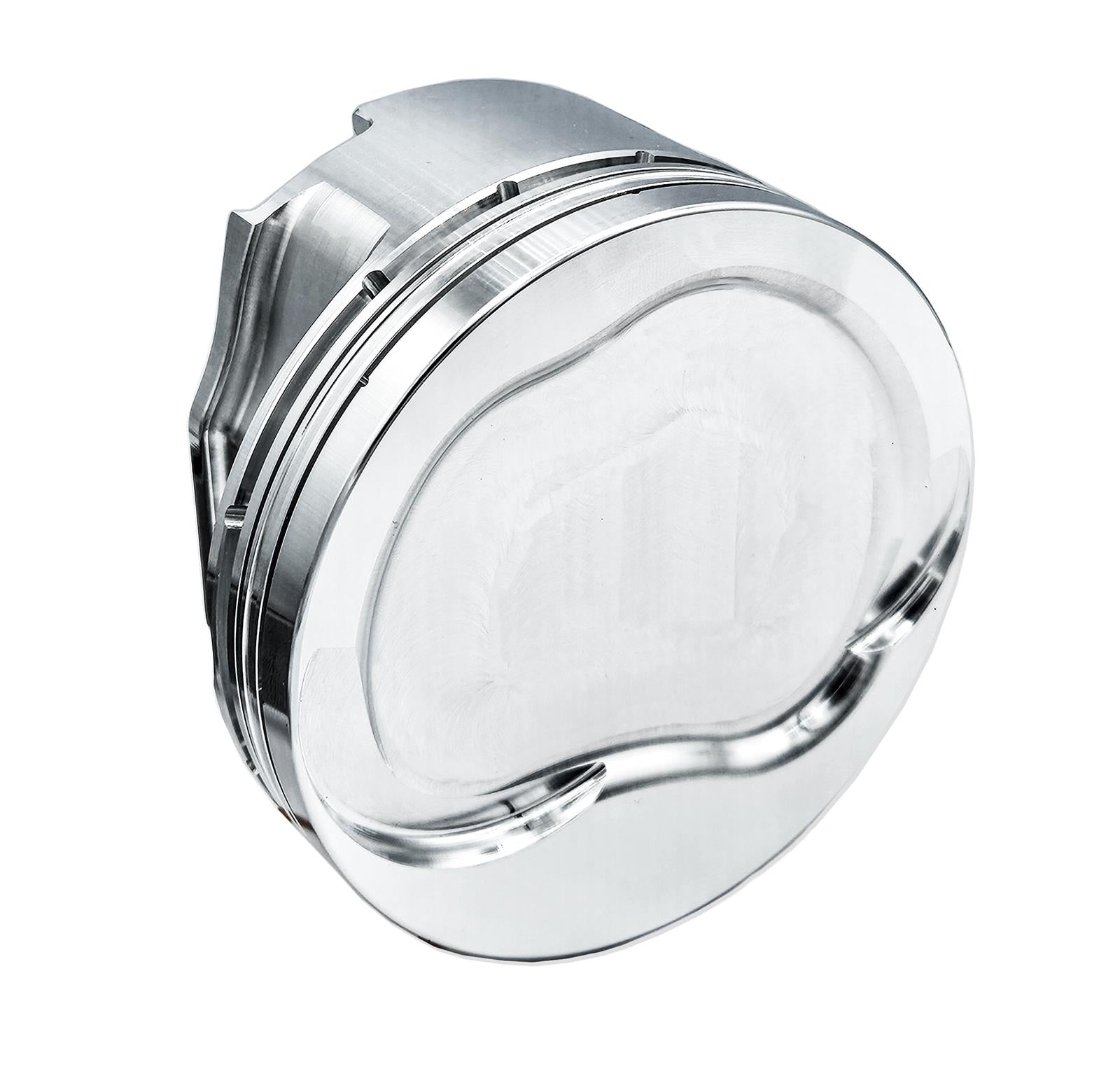

CP-Carrillo Pistons Godzilla Piston and Ring Kits BBFR6550-030

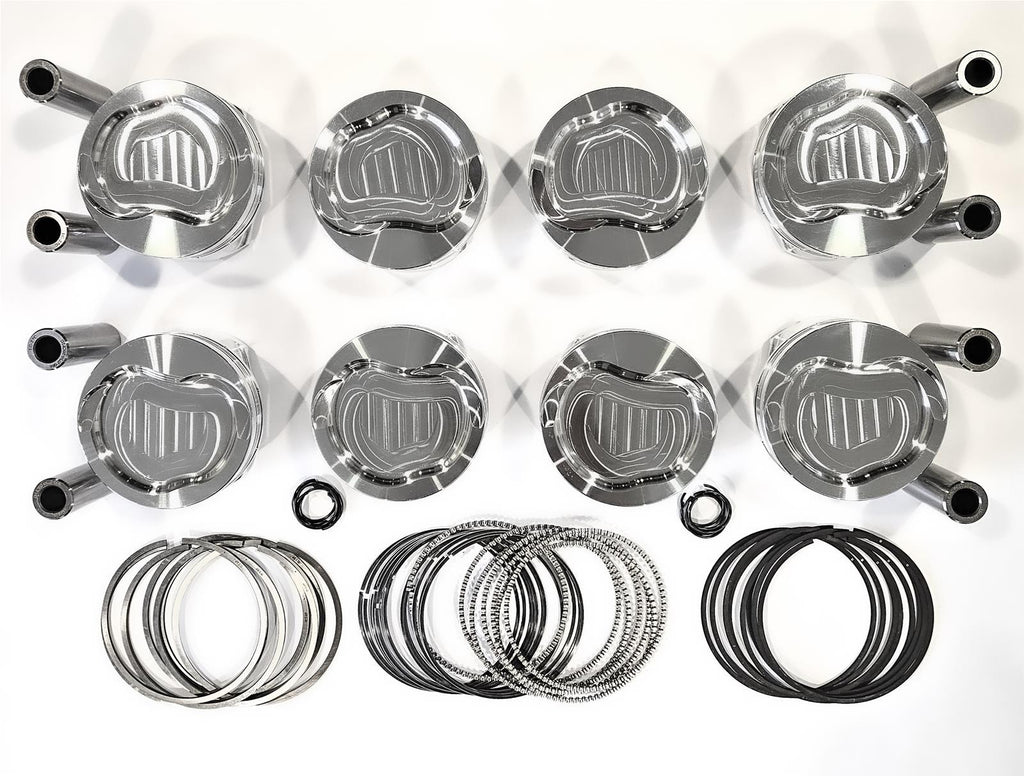

CP-Carrillo Godzilla piston and ring kits include forged aluminum pistons and rings made from ductile iron (plasma-moly coated) and cast iron (phosphate coated). The pistons are available in different bore sizes and other options. They're ideal for a variety of late model Ford engines.Brand: CP-Carrillo
Manufacturer's Part Number: BBFR6550-030
Part Type: Pistons
Product Line: CP-Carrillo Pistons Godzilla Piston and Ring Kits
HP Direct Part Number: CNN-BBFR6550-030
Piston Rings Included: Yes
Bore (in.): 4.250 in.
Bore (mm): 107.950mm
Stroke: 3.976 in.
Engine Stroke Type: Stock
Actual Engine Displacement: 7.4L/451
Rod Length: 6.318 in.

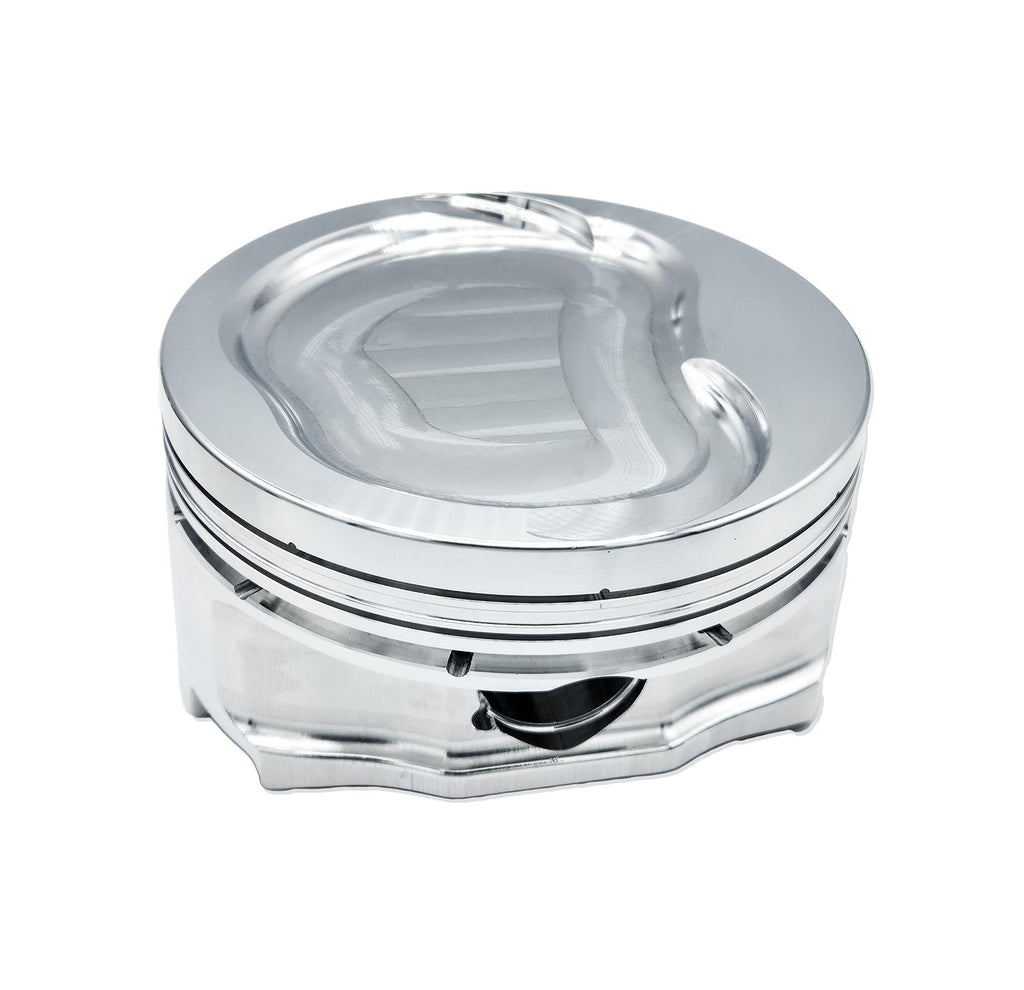

Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.338 in.
Piston Head Volume (cc): -22.10cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: Yes
Gapless: No
Top Ring Thickness: 0.043 in.
Top Ring Material: Ductile iron
Top Ring Facing Material: Plasma-moly
Second Ring Thickness: 0.043 in.
Second Ring Material: Cast iron
Second Ring Facing Material: Phosphate coated
Oil Ring Thickness: 3.0mm
Oil Ring Tension: Standard
Remanufactured: No
Quantity: Sold individually.
