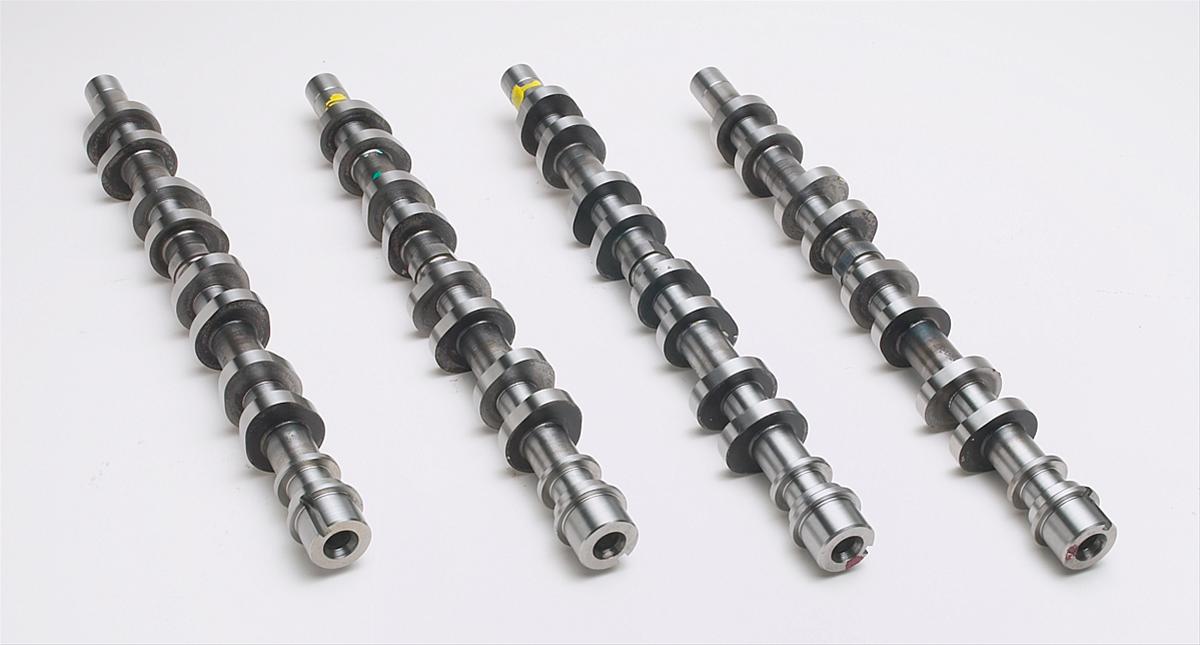

COMP Cams Xtreme XE-R Series Modular 4V Camshafts 106500

COMP Cams Xtreme XE-R modular 4-valve camshafts are specifically created for high-demanding, overhead-camshaft engine configurations. They are built to take advantage of the latest cam technology, to provide maximum performance.Brand: COMP Cams
Manufacturer's Part Number: 106500
Part Type: Camshafts
Product Line: COMP Cams Xtreme XE-R Series Modular 4V Camshafts
HP Direct Part Number: CCA-106500
UPC: 036584097044
Cam Style: DOHC
Camshaft Use: Street/Strip
Camshaft Manufacturers Description: Race or limited street use. Cams require a larger throttle body, mass air, injectors, exhaust upgrades and computer modifications. Automatics need a 3000 stall. Use spring number 26123. Very rough idle
Basic Operating RPM Range: 2,200-6,500
Intake Duration at 050 inch Lift: 242
Exhaust Duration at 050 inch Lift: 240
Duration at 050 inch Lift: 242 int./240 exh.
Advertised Intake Duration: 277
Advertised Exhaust Duration: 275
Advertised Duration: 277 int./275 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.475 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.450 in.
Valve Lift with Factory Rocker Arm Ratio: 0.475 int./0.450 exh.
Lobe Separation (degrees): 114
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: XE278AH-114
Valve Springs Required: Yes
Quantity: Sold as a set of 4.
Notes: Fits 4V DOHC engines only.
