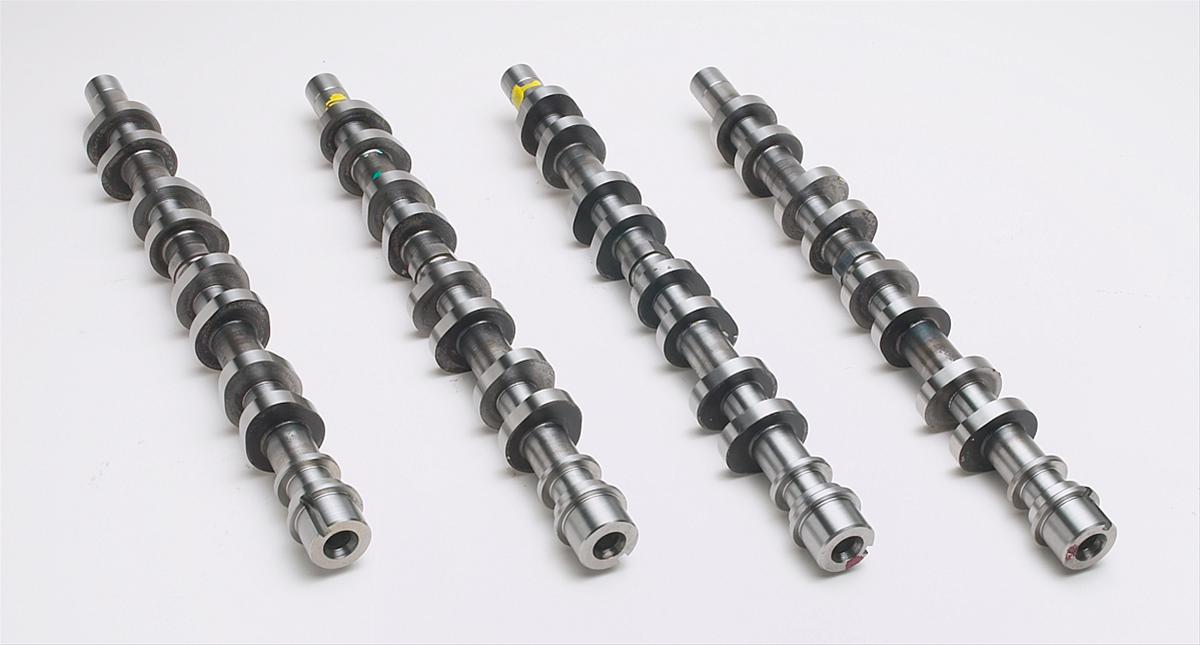

COMP Cams Xtreme XE-R Series Modular 4V Camshafts 106300

COMP Cams Xtreme XE-R modular 4-valve camshafts are specifically created for high-demanding, overhead-camshaft engine configurations. They are built to take advantage of the latest cam technology, to provide maximum performance.Brand: COMP Cams
Manufacturer's Part Number: 106300
Part Type: Camshafts
Product Line: COMP Cams Xtreme XE-R Series Modular 4V Camshafts
HP Direct Part Number: CCA-106300
UPC: 036584096788
Cam Style: DOHC
Camshaft Use: Street/Strip
Basic Operating RPM Range: 1,500-5,800
Intake Duration at 050 inch Lift: 226
Exhaust Duration at 050 inch Lift: 224
Duration at 050 inch Lift: 226 int./224 exh.
Advertised Intake Duration: 261
Advertised Exhaust Duration: 259
Advertised Duration: 261 int./259 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.475 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.450 in.
Valve Lift with Factory Rocker Arm Ratio: 0.475 int./0.450 exh.
Lobe Separation (degrees): 114
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: XE262AH-114
Valve Springs Required: Yes
Quantity: Sold as a set of 4.
Notes: Fits 4V DOHC engines only.
