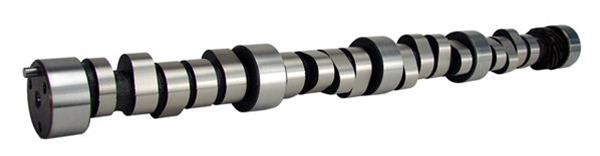

COMP Cams Xtreme RX Mechanical Roller Camshafts 11-739-9

Brand: COMP Cams
Manufacturer's Part Number: 11-739-9
Part Type: Camshafts
Product Line: COMP Cams Xtreme RX Mechanical Roller Camshafts
Automotive Fittings Part Number: CCA-11-739-9
UPC: 036584071860
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Camshaft Manufacturers Description: Large comp eliminator with high ratio rockers and fast bracket.
Basic Operating RPM Range: 5,000-9,000
Intake Duration at 050 inch Lift: 285
Exhaust Duration at 050 inch Lift: 300
Duration at 050 inch Lift: 285 int./300 exh.
Advertised Intake Duration: 318
Advertised Exhaust Duration: 338
Advertised Duration: 318 int./338 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.873 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.800 in.
Valve Lift with Factory Rocker Arm Ratio: 0.873 int./0.800 exh.
Lobe Separation (degrees): 114
Camshaft Gear Attachment: 3-bolt
Intake Valve Lash: 0.024 in.
Exhaust Valve Lash: 0.026 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB 318RXD-14
Valve Springs Required: Yes
Quantity: Sold individually.
Description:
Specifically designed for drag racing, COMP Cams Xtreme RX mechanical roller camshafts provide more lift and area under the curve and shorter seat timing than other high-rpm drag racing camshafts. Available in several different grind numbers, these camshafts are great for Competition Eliminator, Fast Bracket, Quick 16, nitrous, and Heads-Up drag racing applications. Comp Cams Xtreme RX mechanical roller camshafts are sure to meet your drag racing performance needs.
