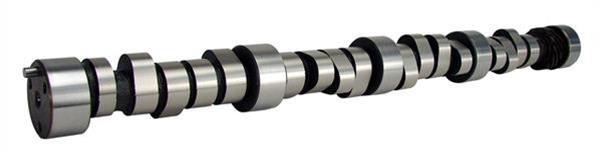

COMP Cams Xtreme RX Mechanical Roller Camshafts 11-735-9

Brand: COMP Cams
Manufacturer's Part Number: 11-735-9
Part Type: Camshafts
Product Line: COMP Cams Xtreme RX Mechanical Roller Camshafts
Automotive Fittings Part Number: CCA-11-735-9
UPC: 036584071846
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Camshaft Manufacturers Description: Lower RPM bracket with good heads.
Basic Operating RPM Range: 4,300-8,000
Intake Duration at 050 inch Lift: 277
Exhaust Duration at 050 inch Lift: 292
Duration at 050 inch Lift: 277 int./292 exh.
Advertised Intake Duration: 310
Advertised Exhaust Duration: 330
Advertised Duration: 310 int./330 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.800 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.800 in.
Valve Lift with Factory Rocker Arm Ratio: 0.800 int./0.800 exh.
Lobe Separation (degrees): 114
Camshaft Gear Attachment: 3-bolt
Intake Valve Lash: 0.026 in.
Exhaust Valve Lash: 0.028 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB 310RXD-14
Valve Springs Required: Yes
Quantity: Sold individually.
Description:
Specifically designed for drag racing, COMP Cams Xtreme RX mechanical roller camshafts provide more lift and area under the curve and shorter seat timing than other high-rpm drag racing camshafts. Available in several different grind numbers, these camshafts are great for Competition Eliminator, Fast Bracket, Quick 16, nitrous, and Heads-Up drag racing applications. Comp Cams Xtreme RX mechanical roller camshafts are sure to meet your drag racing performance needs.
