Description

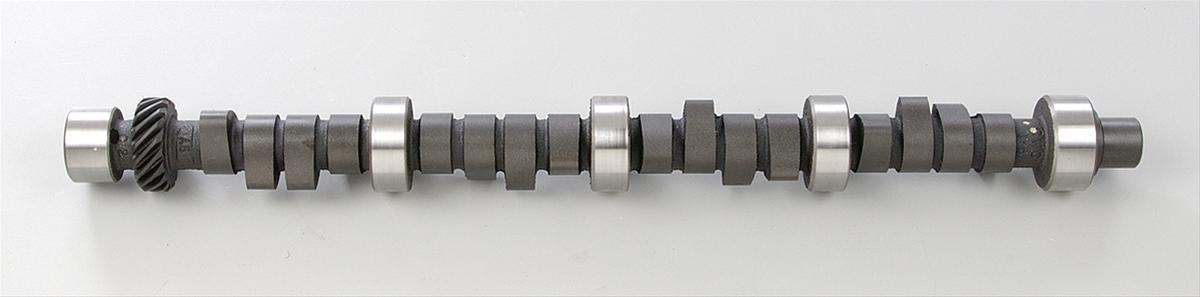

COMP Cams offers these Xtreme Hi-Lift cams for a variety of applications. They offer the extra lift you need to help the engine breathe at higher rpm.Brand: COMP Cams
Manufacturer's Part Number: 20-227-4
Part Type: Camshafts
Product Line: COMP Cams Xtreme Hi-Lift Camshafts
HP Direct Part Number: CCA-20-227-4
UPC: 036584078289
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,000-6,000
Intake Duration at 050 inch Lift: 231
Exhaust Duration at 050 inch Lift: 237
Duration at 050 inch Lift: 231 int./237 exh.
Advertised Intake Duration: 275
Advertised Exhaust Duration: 287
Advertised Duration: 275 int./287 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.525 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.525 in.
Valve Lift with Factory Rocker Arm Ratio: 0.525 int./0.525 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CRS XE275HL-10
Valve Springs Required: Yes
Quantity: Sold individually.
Manufacturer's Part Number: 20-227-4
Part Type: Camshafts
Product Line: COMP Cams Xtreme Hi-Lift Camshafts
HP Direct Part Number: CCA-20-227-4
UPC: 036584078289
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,000-6,000
Intake Duration at 050 inch Lift: 231
Exhaust Duration at 050 inch Lift: 237
Duration at 050 inch Lift: 231 int./237 exh.
Advertised Intake Duration: 275
Advertised Exhaust Duration: 287
Advertised Duration: 275 int./287 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.525 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.525 in.
Valve Lift with Factory Rocker Arm Ratio: 0.525 int./0.525 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CRS XE275HL-10
Valve Springs Required: Yes
Quantity: Sold individually.
