Description

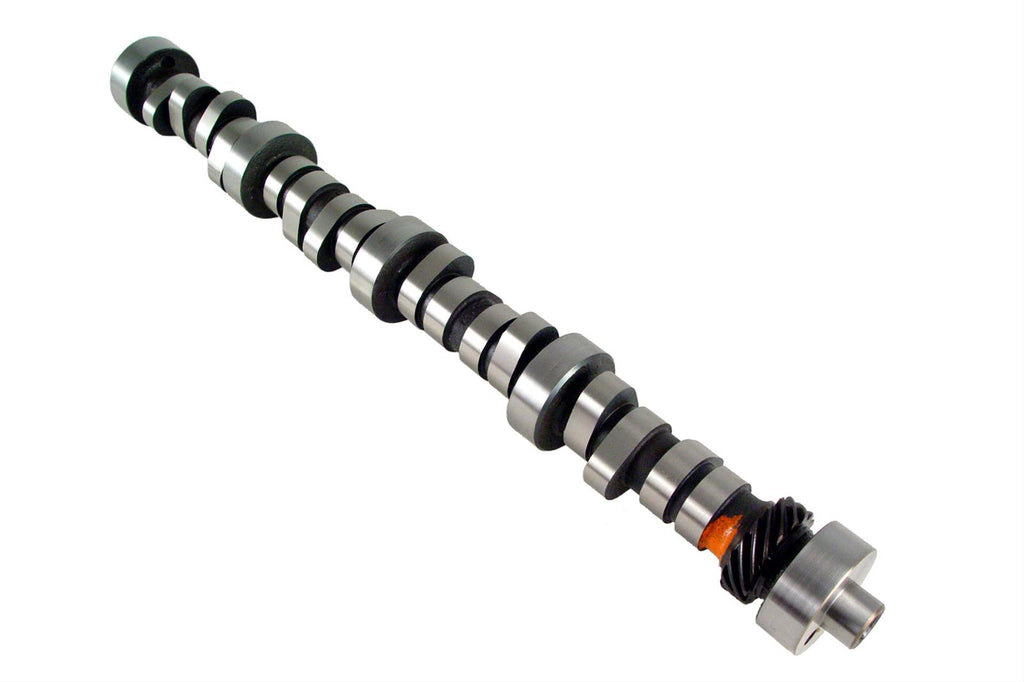

COMP Cams Xtreme fuel injected camshafts are designed for late model applications. Ground using faster-opening and more efficient ramp profiles, Xtreme camshafts are engineered for 1.6 ratio rocker arms and beehive valve springs, which provide a dramatic increase in torque and horsepower.Brand: COMP Cams
Manufacturer's Part Number: 35-776-8
Part Type: Camshafts
Product Line: COMP Cams Xtreme Fuel Injected Camshafts
HP Direct Part Number: CCA-35-776-8
UPC: 036584127413
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Basic Operating RPM Range: 3,200-6,500
Intake Duration at 050 inch Lift: 248
Exhaust Duration at 050 inch Lift: 258
Duration at 050 inch Lift: 248 int./258 exh.
Advertised Intake Duration: 304
Advertised Exhaust Duration: 314
Advertised Duration: 304 int./314 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.608 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.608 in.
Valve Lift with Factory Rocker Arm Ratio: 0.608 int./0.608 exh.
Lobe Separation (degrees): 114
Remanufactured: No
Computer-Controlled Compatible: Yes
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Requires custom computer tuning. Designed to 347 c.i.d. or larger engine.
Manufacturer's Part Number: 35-776-8
Part Type: Camshafts
Product Line: COMP Cams Xtreme Fuel Injected Camshafts
HP Direct Part Number: CCA-35-776-8
UPC: 036584127413
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Basic Operating RPM Range: 3,200-6,500
Intake Duration at 050 inch Lift: 248
Exhaust Duration at 050 inch Lift: 258
Duration at 050 inch Lift: 248 int./258 exh.
Advertised Intake Duration: 304
Advertised Exhaust Duration: 314
Advertised Duration: 304 int./314 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.608 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.608 in.
Valve Lift with Factory Rocker Arm Ratio: 0.608 int./0.608 exh.
Lobe Separation (degrees): 114
Remanufactured: No
Computer-Controlled Compatible: Yes
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Requires custom computer tuning. Designed to 347 c.i.d. or larger engine.
