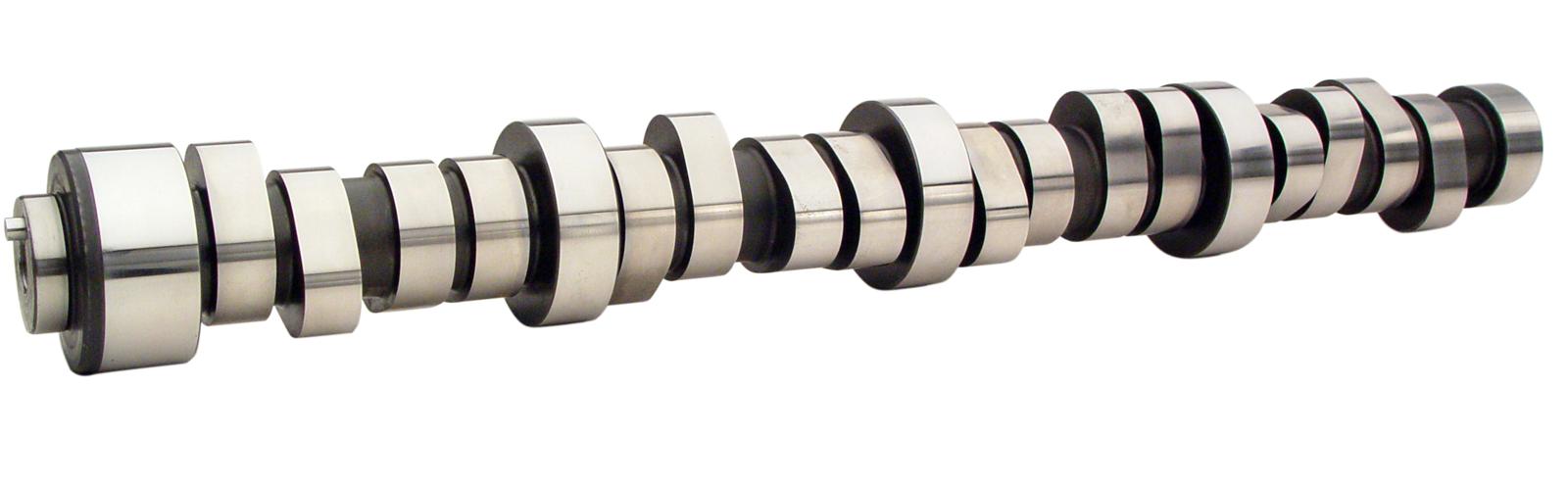

COMP Cams Xtreme Fuel Injected Camshafts 112-502-11

COMP Cams Xtreme fuel injected camshafts are designed for late model applications. Ground using faster-opening and more efficient ramp profiles, Xtreme camshafts are engineered for 1.6 ratio rocker arms and beehive valve springs, which provide a dramatic increase in torque and horsepower.Brand: COMP Cams
Manufacturer's Part Number: 112-502-11
Part Type: Camshafts
Product Line: COMP Cams Xtreme Fuel Injected Camshafts
HP Direct Part Number: CCA-112-502-11
UPC: 036584115601
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Camshaft Manufacturers Description: Needs extended rev limit and better exhaust, strongest power over 2,500 RPM. Custom computer tuning is required for this camshaft.
Basic Operating RPM Range: 2,000-6,200
Intake Duration at 050 inch Lift: 224
Exhaust Duration at 050 inch Lift: 228
Duration at 050 inch Lift: 224 int./228 exh.
Advertised Intake Duration: 273
Advertised Exhaust Duration: 277
Advertised Duration: 273 int./277 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.547 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.550 in.
Valve Lift with Factory Rocker Arm Ratio: 0.547 int./0.550 exh.
Lobe Separation (degrees): 114
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: 273H-14
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Fits engines without variable cam timing.
