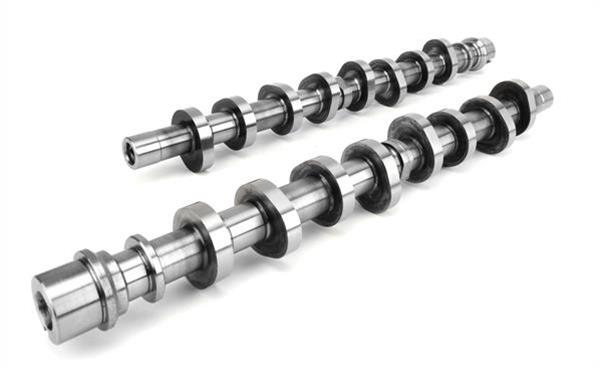

COMP Cams Xtreme Energy Modular 2-Valve Camshafts 102560

COMP Cams Xtreme Energy modular 2-valve camshafts are specifically created for high-demanding, overhead-camshaft engine configurations. From stock replacements to ultimate performance, there is an Xtreme Energy cam to meet your performance goals.Brand: COMP Cams
Manufacturer's Part Number: 102560
Part Type: Camshafts
Product Line: COMP Cams Xtreme Energy Modular 2-Valve Camshafts
HP Direct Part Number: CCA-102560
UPC: 036584096313
Cam Style: SOHC
Camshaft Use: Street/Strip
Camshaft Manufacturers Description: Good torque with powerful mid-range when using a blower. Custom tuning required.
Basic Operating RPM Range: 1,600-5,600
Intake Duration at 050 inch Lift: 226
Exhaust Duration at 050 inch Lift: 230
Duration at 050 inch Lift: 224 int./230 exh.
Advertised Intake Duration: 262
Advertised Exhaust Duration: 266
Advertised Duration: 262 int./266 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.550 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.550 in.
Valve Lift with Factory Rocker Arm Ratio: 0.550 int./0.550 exh.
Lobe Separation (degrees): 116
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: XE262BH-16
Valve Springs Required: Yes
Quantity: Sold as a pair.
Notes: Fits 2V SOHC engines only. Requires custom tuning.
