Description
Brand: COMP Cams
Manufacturer's Part Number: 12-661-47
Part Type: Camshafts
Product Line: COMP Cams Xtreme Energy Camshafts
Automotive Fittings Part Number: CCA-12-661-47
UPC: 036584096610
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,300-6,500
Intake Duration at 050 inch Lift: 240
Exhaust Duration at 050 inch Lift: 246
Duration at 050 inch Lift: 240 int./246 exh.
Advertised Intake Duration: 284
Advertised Exhaust Duration: 296
Advertised Duration: 284 int./296 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.507 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.510 in.
Valve Lift with Factory Rocker Arm Ratio: 0.507 int./0.510 exh.
Lobe Separation (degrees): 110
Camshaft Gear Attachment: 3-bolt
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: XE284H-10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Cam has 4/7 swap firing order.
Description:

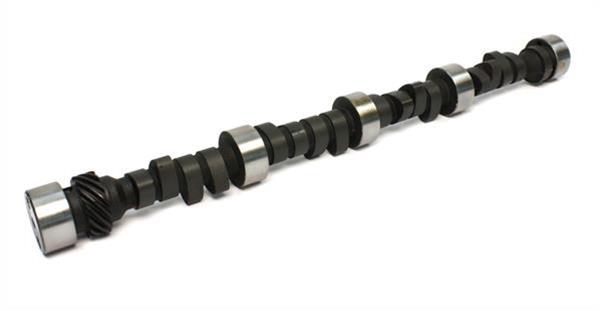

COMP Cams Xtreme Energy camshafts employ the latest cam technology to provide maximum performance. Whether your use is off-roading, towing, or street performance, there's an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers—while delivering increased engine vacuum. Hundreds of models are available for fitment on vehicles from 1955 to the present. Select the cam designed for your application.
Manufacturer's Part Number: 12-661-47
Part Type: Camshafts
Product Line: COMP Cams Xtreme Energy Camshafts
Automotive Fittings Part Number: CCA-12-661-47
UPC: 036584096610
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,300-6,500
Intake Duration at 050 inch Lift: 240
Exhaust Duration at 050 inch Lift: 246
Duration at 050 inch Lift: 240 int./246 exh.
Advertised Intake Duration: 284
Advertised Exhaust Duration: 296
Advertised Duration: 284 int./296 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.507 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.510 in.
Valve Lift with Factory Rocker Arm Ratio: 0.507 int./0.510 exh.
Lobe Separation (degrees): 110
Camshaft Gear Attachment: 3-bolt
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: XE284H-10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Cam has 4/7 swap firing order.
Description:
COMP Cams Xtreme Energy camshafts employ the latest cam technology to provide maximum performance. Whether your use is off-roading, towing, or street performance, there's an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers—while delivering increased engine vacuum. Hundreds of models are available for fitment on vehicles from 1955 to the present. Select the cam designed for your application.
