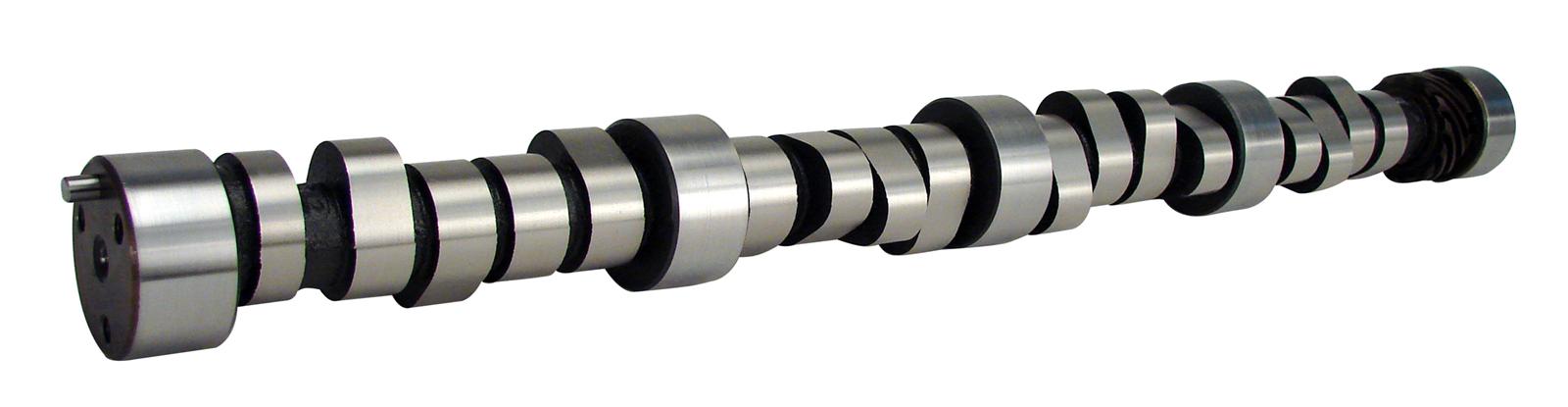

COMP Cams Xtreme Energy Camshafts 11-772-8

COMP Cams Xtreme Energy camshafts employ the latest cam technology to provide maximum performance. Whether your use is off-roading, towing, or street performance, there's an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers—while delivering increased engine vacuum. Hundreds of models are available for fitment on vehicles from 1955 to the present. Select the cam designed for your application.Brand: COMP Cams
Manufacturer's Part Number: 11-772-8
Part Type: Camshafts
Product Line: COMP Cams Xtreme Energy Camshafts
HP Direct Part Number: CCA-11-772-8
UPC: 036584058939
Cam Style: Solid roller, Retro-fit
Camshaft Use: Street/Strip
Basic Operating RPM Range: 3,000-7,000
Intake Duration at 050 inch Lift: 248
Exhaust Duration at 050 inch Lift: 254
Duration at 050 inch Lift: 248 int./254 exh.
Advertised Intake Duration: 286
Advertised Exhaust Duration: 292
Advertised Duration: 286 int./292 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.653 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.660 in.
Valve Lift with Factory Rocker Arm Ratio: 0.653 int./0.660 exh.
Lobe Separation (degrees): 110
Intake Valve Lash: 0.016 in.
Exhaust Valve Lash: 0.018 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB XR286 R-10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Requires thrust button and wear plate.
