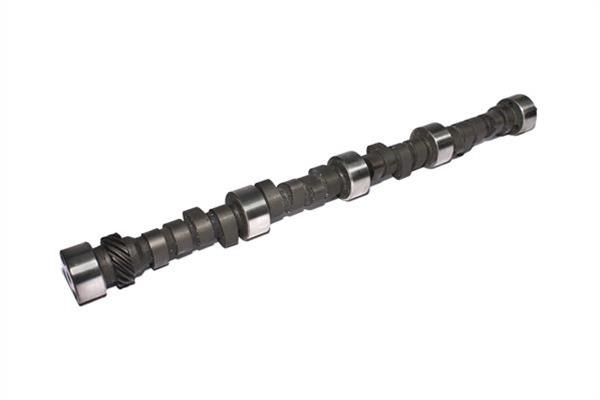

COMP Cams Xtreme Energy Camshafts 11-653-47

COMP Cams Xtreme Energy camshafts employ the latest cam technology to provide maximum performance. Whether your use is off-roading, towing, or street performance, there's an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers—while delivering increased engine vacuum. Hundreds of models are available for fitment on vehicles from 1955 to the present. Select the cam designed for your application.Brand: COMP Cams
Manufacturer's Part Number: 11-653-47
Part Type: Camshafts
Product Line: COMP Cams Xtreme Energy Camshafts
HP Direct Part Number: CCA-11-653-47
UPC: 036584096696
Cam Style: Solid flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,000-6,400
Intake Duration at 050 inch Lift: 236
Exhaust Duration at 050 inch Lift: 242
Duration at 050 inch Lift: 236 int./242 exh.
Advertised Intake Duration: 274
Advertised Exhaust Duration: 280
Advertised Duration: 274 int./280 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.568 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.578 in.
Valve Lift with Factory Rocker Arm Ratio: 0.568 int./0.578 exh.
Lobe Separation (degrees): 110
Intake Valve Lash: 0.016 in.
Exhaust Valve Lash: 0.016 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: XE274S
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Special 4/7 swap firing order.
