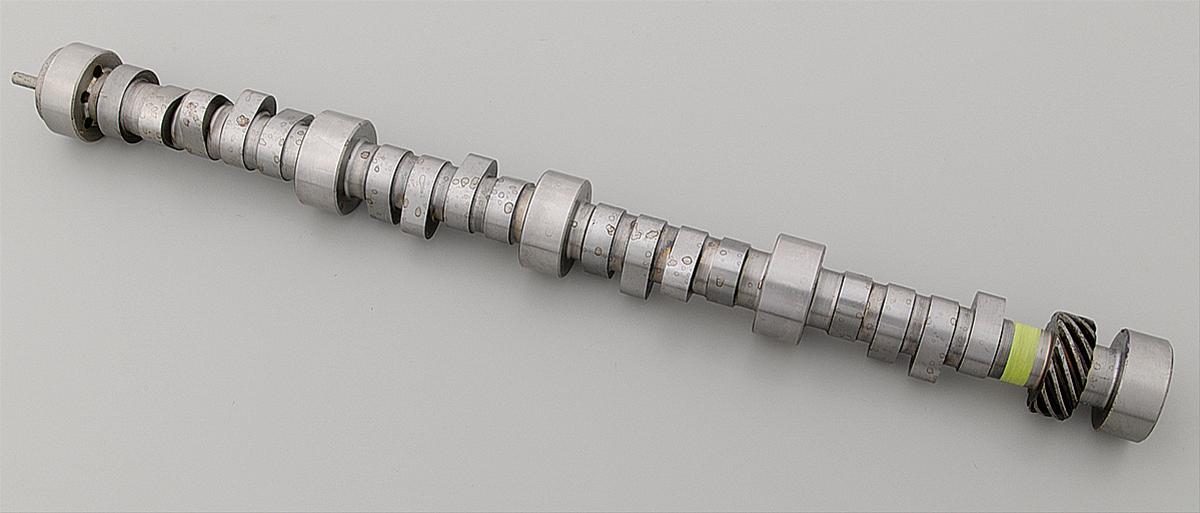

COMP Cams Xtreme Energy Camshafts 07-502-8

COMP Cams Xtreme Energy camshafts employ the latest cam technology to provide maximum performance. Whether your use is off-roading, towing, or street performance, there's an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers—while delivering increased engine vacuum. Hundreds of models are available for fitment on vehicles from 1955 to the present. Select the cam designed for your application.Brand: COMP Cams
Manufacturer's Part Number: 07-502-8
Part Type: Camshafts
Product Line: COMP Cams Xtreme Energy Camshafts
HP Direct Part Number: CCA-07-502-8
UPC: 036584063230
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Basic Operating RPM Range: 1,500-5,500
Intake Duration at 050 inch Lift: 218
Exhaust Duration at 050 inch Lift: 224
Duration at 050 inch Lift: 218 int./224 exh.
Advertised Intake Duration: 269
Advertised Exhaust Duration: 276
Advertised Duration: 269 int./276 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.495 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.503 in.
Valve Lift with Factory Rocker Arm Ratio: 0.495 int./0.503 exh.
Lobe Separation (degrees): 112
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: LT1 XR269HR-12
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: 1992-94 LT1 must re-use original dowel pin or cut new pin to correct length
