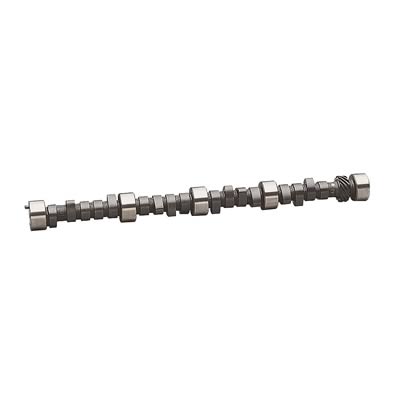

COMP Cams Xtreme Energy Camshafts 07-305-9

COMP Cams Xtreme Energy camshafts employ the latest cam technology to provide maximum performance. Whether your use is off-roading, towing, or street performance, there's an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers—while delivering increased engine vacuum. Hundreds of models are available for fitment on vehicles from 1955 to the present. Select the cam designed for your application.Brand: COMP Cams
Manufacturer's Part Number: 07-305-9
Part Type: Camshafts
Product Line: COMP Cams Xtreme Energy Camshafts
HP Direct Part Number: CCA-07-305-9
UPC: 036584066064
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street
Basic Operating RPM Range: 1,500-5,500
Intake Duration at 050 inch Lift: 220
Exhaust Duration at 050 inch Lift: 230
Duration at 050 inch Lift: 220 int./230 exh.
Advertised Intake Duration: 276
Advertised Exhaust Duration: 290
Advertised Duration: 276 int./290 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.510 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.510 in.
Valve Lift with Factory Rocker Arm Ratio: 0.510 int./0.510 exh.
Lobe Separation (degrees): 114
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: LT1 276HR-14
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Camshaft is ground from a billet core.
