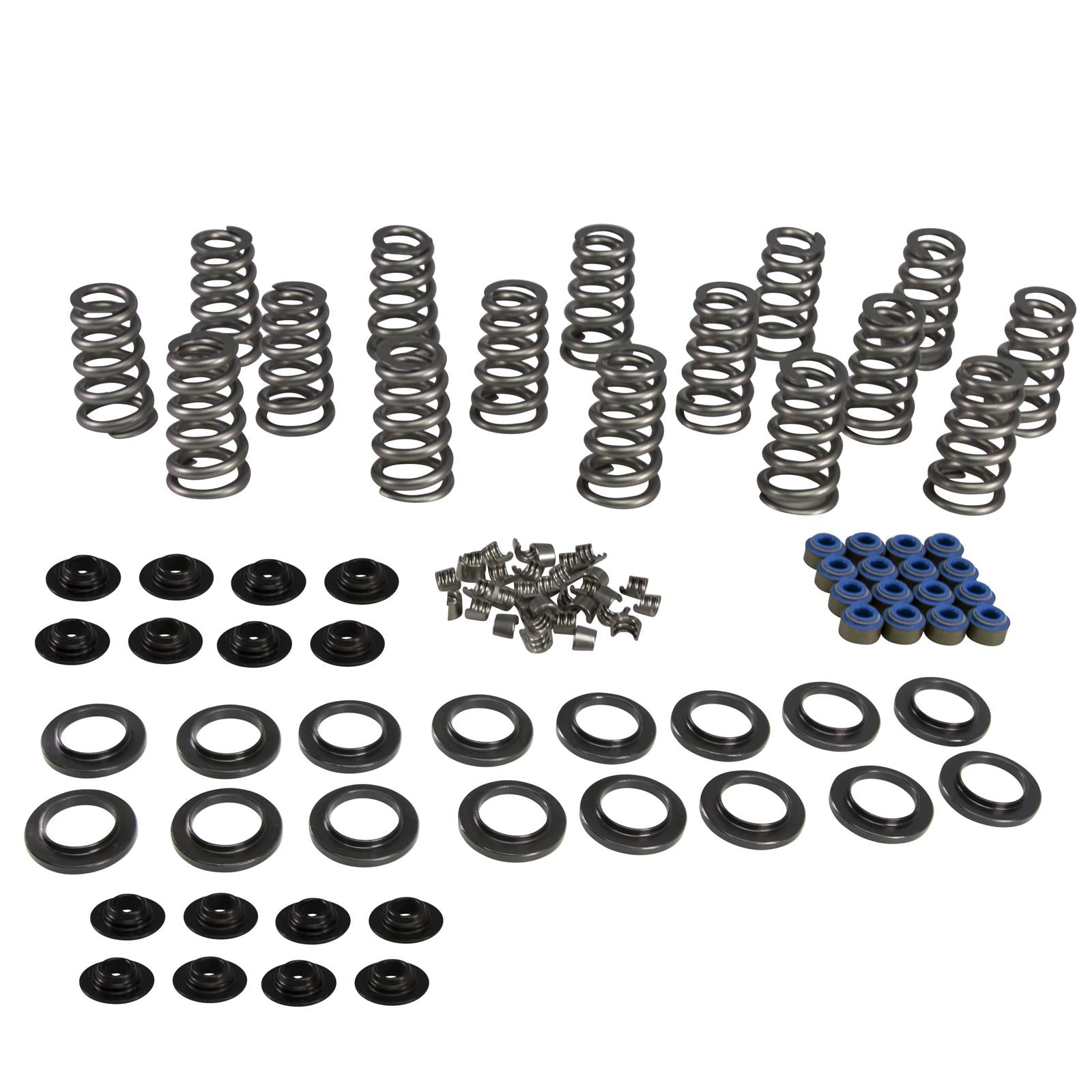

COMP Cams Valve Springs 7230CC-KIT

Valve springs are one of the most critical and overlooked components in your engine. They must be matched to your cam in order for the engine to reach its full potential. It does absolutely no good to install a cam that will perform up to 8,000 rpm if you do not have the correct springs. Use the only valve springs that will give the recommended spring pressure with the valve both on the seat and at maximum lift. COMP Cams valve springs are offered in single and dual styles to meet your cam requirements.Brand: COMP Cams
Manufacturer's Part Number: 7230CC-KIT
Part Type: Valve Springs
Product Line: COMP Cams Valve Springs
HP Direct Part Number: CCA-7230CC-KIT
UPC: 036584399346
Valve Spring Style: Conical
Number of Springs Per Valve: Single
Maximum Valve Lift (in.): 0.660 in.
Retainers Included: Yes
Retainer Material: Chromoly steel
Outside Diameter of Outer Spring (in.): 1.332 in.
Coil Bind Height (in.): 1.175 in.
Damper Spring Included: No
Spring Rate (lbs/in.): 519 lbs./in.
Inside Diameter of Outer Spring (in.): 0.932 in.
Inside Diameter of Inner Spring (in.): 0.660 in.
Locks Included: Yes
Lock Material: Hardened steel
Lock Groove Quantity: 3-groove
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Springs Coated: No
Valve Stem Diameter (in.): 0.314 in.
Valve Stem Diameter (mm): 8.00mm
Remanufactured: No
Quantity: Sold as a set of 16.
