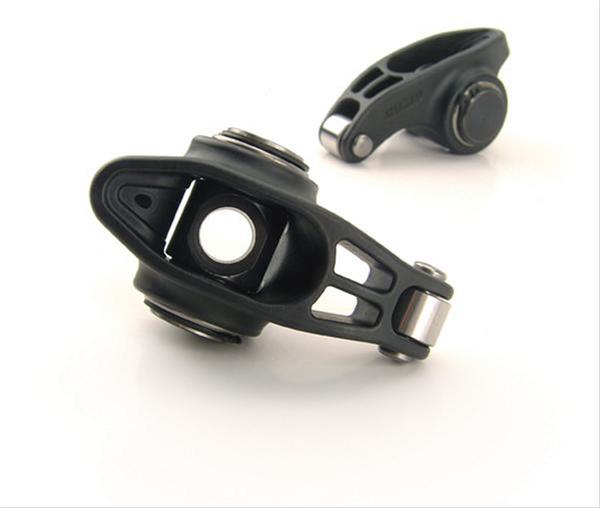

COMP Cams Ultra Pro Magnum Rocker Arms 1609-1

Utilizing years of valvetrain design experience, the latest FEA stress analysis technology, and an exhaustive testing regiment (dyno and Spintron), COMP Cams engineering team left no detail to chance. Everything from casting techniques to valve spring clearance was scrutinized to ensure that Ultra Pro Magnum rocker arms not only lived up to the lofty standards of their predecessor, but also took stud mount rocker performance, stability, and value to a whole new level. The most noticeable advancement centers around their nearly unbreakable investment cast 8650 chromoly body. The arched, web-like design delivers a nearly 29 percent increase in strength and rigidity, while reducing the moment of inertia and optimizing the dynamic balance. The resulting rockers maximize lift and valvetrain control at high rpm. The increased retainer and valve spring clearances of the new design enable the use of large-diameter valve springs, retainers, and locks, without clearance or fitment issues. The new black oxide exterior finish offers a distinctive appearance, along with long-term corrosion resistance. The COMP Cams Ultra Pro Magnum rocker arms feature an oversized trunnion and precision-sorted needle bearings designed for use with high-load valve springs. These unique rockers also feature hardened roller tips for reduced friction and elimination of the valve stem "side loading" that causes premature valve guide wear.Brand: COMP Cams
Manufacturer's Part Number: 1609-1
Part Type: Rocker Arms
Product Line: COMP Cams Ultra Pro Magnum Rocker Arms
HP Direct Part Number: CCA-1609-1
UPC: 036584196365
Rocker Arm Mounting Style: Stud
Self-Aligning: No
Rocker Arm Ratio: 1.6
Stud Size: 3/8 in.
Maximum Spring Diameter (in.): 1.540 in.
Rocker Arm Style: Full roller
Shims Included: No
Rocker Arm Material: Chromoly steel
Rocker Arm Body Style: Standard
Rocker Arm Fasteners Included: Yes
Rocker Arm Nut Style: Polylock
Rocker Arm Finish: Black oxide
Quantity: Sold individually.
Notes: Designed to fit Trick Flow ® Twisted Wedge ® cylinder heads.
