Description

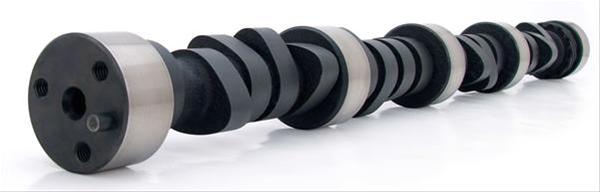

These tight lash camshafts from COMP Cams are designed for Circle Track and drag racing applications where a tight lash is necessary. These cams produce good torque and power and can handle high, sustained rpm.Brand: COMP Cams
Manufacturer's Part Number: 12-506-20
Part Type: Camshafts
Product Line: COMP Cams Tight Lash Camshafts
HP Direct Part Number: CCA-12-506-20
UPC: 036584177951
Cam Style: Solid flat tappet
Camshaft Use: Drag race
Basic Operating RPM Range: 3,400-7,000
Intake Duration at 050 inch Lift: 259
Exhaust Duration at 050 inch Lift: 259
Duration at 050 inch Lift: 259 int./259 exh.
Advertised Intake Duration: 288
Advertised Exhaust Duration: 292
Advertised Duration: 288 int./292 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.550 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Valve Lift with Factory Rocker Arm Ratio: 0.550 int./0.560 exh.
Lobe Separation (degrees): 106
Camshaft Gear Attachment: 3-bolt
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 288BTL-6
Valve Springs Required: Yes
Quantity: Sold individually.
Manufacturer's Part Number: 12-506-20
Part Type: Camshafts
Product Line: COMP Cams Tight Lash Camshafts
HP Direct Part Number: CCA-12-506-20
UPC: 036584177951
Cam Style: Solid flat tappet
Camshaft Use: Drag race
Basic Operating RPM Range: 3,400-7,000
Intake Duration at 050 inch Lift: 259
Exhaust Duration at 050 inch Lift: 259
Duration at 050 inch Lift: 259 int./259 exh.
Advertised Intake Duration: 288
Advertised Exhaust Duration: 292
Advertised Duration: 288 int./292 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.550 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Valve Lift with Factory Rocker Arm Ratio: 0.550 int./0.560 exh.
Lobe Separation (degrees): 106
Camshaft Gear Attachment: 3-bolt
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 288BTL-6
Valve Springs Required: Yes
Quantity: Sold individually.
