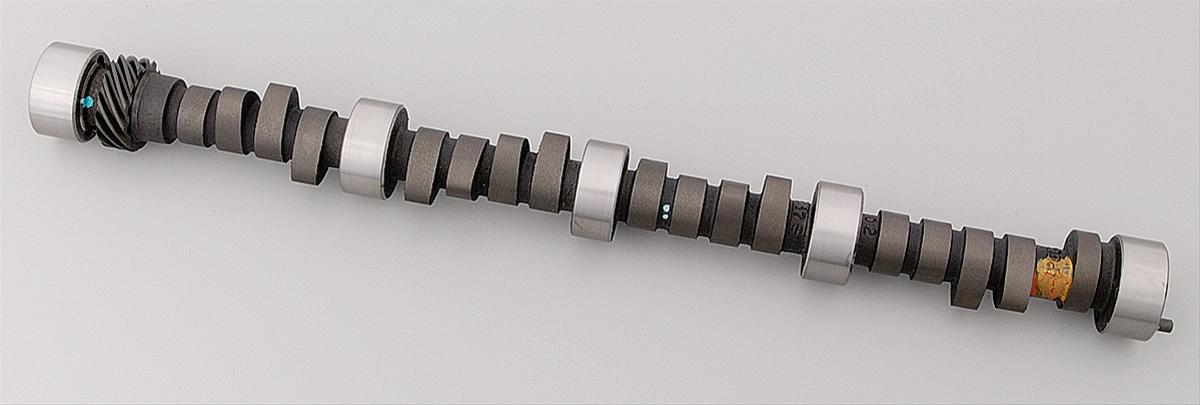

COMP Cams Tight Lash Camshafts 12-500-5

These tight lash camshafts from COMP Cams are designed for Circle Track and drag racing applications where a tight lash is necessary. These cams produce good torque and power and can handle high, sustained rpm.Brand: COMP Cams
Manufacturer's Part Number: 12-500-5
Part Type: Camshafts
Product Line: COMP Cams Tight Lash Camshafts
HP Direct Part Number: CCA-12-500-5
UPC: 036584540175
Cam Style: Solid flat tappet
Camshaft Use: Drag race
Basic Operating RPM Range: 2,800-6,300
Intake Duration at 050 inch Lift: 246
Exhaust Duration at 050 inch Lift: 250
Duration at 050 inch Lift: 246 int./250 exh.
Advertised Intake Duration: 276
Advertised Exhaust Duration: 280
Advertised Duration: 276 int./280 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.520 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.530 in.
Valve Lift with Factory Rocker Arm Ratio: 0.520 int./0.530 exh.
Lobe Separation (degrees): 106
Intake Valve Lash: 0.018 in.
Exhaust Valve Lash: 0.018 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 276TL-6
Valve Springs Required: Yes
Quantity: Sold individually.
