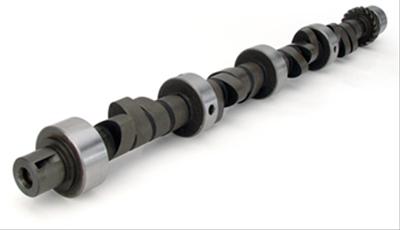

COMP Cams Oval Track Camshafts 20-630-5

COMP Cams oval track camshafts are designed specifically for racing applications. They are available to complement a variety of engine configurations, track lengths, and conditions--simply order the model that fits the needs of your particular make and model. Before you start the next oval track race, install the winning camshaft edge from COMP Cams.Brand: COMP Cams
Manufacturer's Part Number: 20-630-5
Part Type: Camshafts
Product Line: COMP Cams Oval Track Camshafts
HP Direct Part Number: CCA-20-630-5
UPC: 036584080091
Cam Style: Solid flat tappet
Camshaft Use: Circle Track
Basic Operating RPM Range: 3,700-6,700
Intake Duration at 050 inch Lift: 247
Exhaust Duration at 050 inch Lift: 251
Duration at 050 inch Lift: 247 int./251 exh.
Advertised Intake Duration: 273
Advertised Exhaust Duration: 277
Advertised Duration: 273 int./277 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.570 in.
Valve Lift with Factory Rocker Arm Ratio: 0.560 int./0.570 exh.
Lobe Separation (degrees): 108
Intake Valve Lash: 0.018 in.
Exhaust Valve Lash: 0.020 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CRS 273MM-8
Valve Springs Required: Yes
Quantity: Sold individually.
