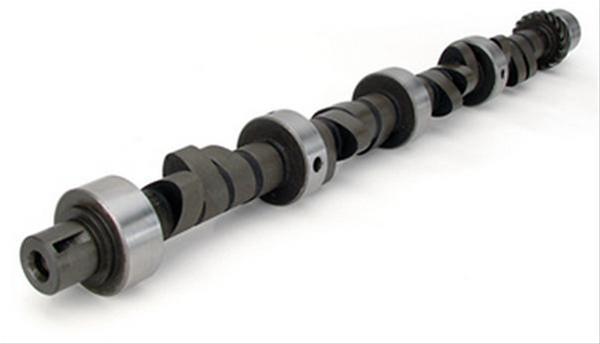

COMP Cams Oval Track Camshafts 20-629-5

COMP Cams oval track camshafts are designed specifically for racing applications. They are available to complement a variety of engine configurations, track lengths, and conditions--simply order the model that fits the needs of your particular make and model. Before you start the next oval track race, install the winning camshaft edge from COMP Cams.Brand: COMP Cams
Manufacturer's Part Number: 20-629-5
Part Type: Camshafts
Product Line: COMP Cams Oval Track Camshafts
HP Direct Part Number: CCA-20-629-5
UPC: 036584080008
Cam Style: Solid flat tappet
Camshaft Use: Circle Track
Basic Operating RPM Range: 3,500-6,500
Intake Duration at 050 inch Lift: 243
Exhaust Duration at 050 inch Lift: 247
Duration at 050 inch Lift: 243 int./247 exh.
Advertised Intake Duration: 269
Advertised Exhaust Duration: 273
Advertised Duration: 269 int./273 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.549 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Valve Lift with Factory Rocker Arm Ratio: 0.549 int./0.560 exh.
Lobe Separation (degrees): 108
Intake Valve Lash: 0.018 in.
Exhaust Valve Lash: 0.020 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CRS 269MM-8
Valve Springs Required: Yes
Quantity: Sold individually.
