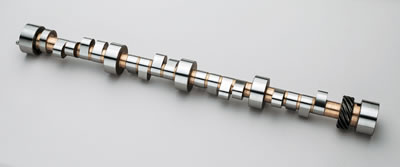

COMP Cams Oval Track Camshafts 12-996-9

COMP Cams oval track camshafts are designed specifically for racing applications. They are available to complement a variety of engine configurations, track lengths, and conditions--simply order the model that fits the needs of your particular make and model. Before you start the next oval track race, install the winning camshaft edge from COMP Cams.Brand: COMP Cams
Manufacturer's Part Number: 12-996-9
Part Type: Camshafts
Product Line: COMP Cams Oval Track Camshafts
HP Direct Part Number: CCA-12-996-9
UPC: 036584690269
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 6,200-8,500
Intake Duration at 050 inch Lift: 276
Exhaust Duration at 050 inch Lift: 284
Duration at 050 inch Lift: 276 int./284 exh.
Advertised Intake Duration: 312
Advertised Exhaust Duration: 322
Advertised Duration: 312 int./322 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.630 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.630 in.
Valve Lift with Factory Rocker Arm Ratio: 0.630 int./0.630 exh.
Lobe Separation (degrees): 107
Intake Valve Lash: 0.020 in.
Exhaust Valve Lash: 0.022 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 312AR-7
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: 0.900 base circle. Requires upgraded gear, thrust button, and wear plate. Designed for 358 c.i.d. engine with open carburetor.
