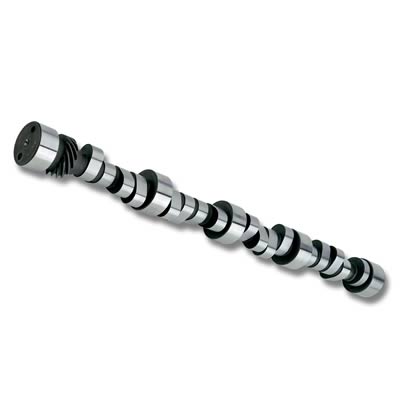

COMP Cams Oval Track Camshafts 12-683-5

COMP Cams oval track camshafts are designed specifically for racing applications. They are available to complement a variety of engine configurations, track lengths, and conditions--simply order the model that fits the needs of your particular make and model. Before you start the next oval track race, install the winning camshaft edge from COMP Cams.Brand: COMP Cams
Manufacturer's Part Number: 12-683-5
Part Type: Camshafts
Product Line: COMP Cams Oval Track Camshafts
HP Direct Part Number: CCA-12-683-5
UPC: 036584070504
Cam Style: Solid flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 3,200-6,800
Intake Duration at 050 inch Lift: 248
Exhaust Duration at 050 inch Lift: 252
Duration at 050 inch Lift: 248 int./252 exh.
Advertised Intake Duration: 274
Advertised Exhaust Duration: 278
Advertised Duration: 274 int./278 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.468 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.468 in.
Valve Lift with Factory Rocker Arm Ratio: 0.468 int./0.468 exh.
Lobe Separation (degrees): 107
Intake Valve Lash: 0.014 in.
Exhaust Valve Lash: 0.014 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 274L312 S7
Valve Springs Required: Yes
Quantity: Sold individually.
