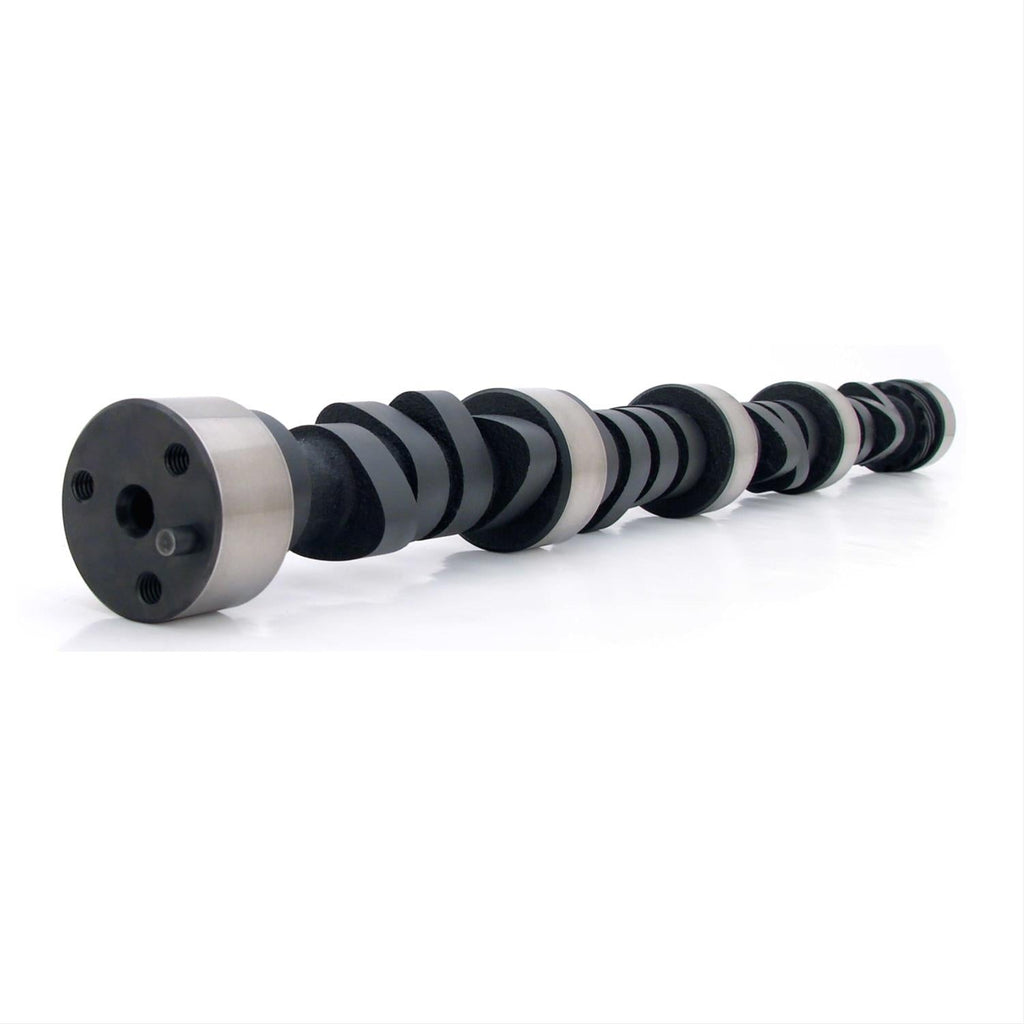

COMP Cams Oval Track Camshafts 12-610-20

COMP Cams oval track camshafts are designed specifically for racing applications. They are available to complement a variety of engine configurations, track lengths, and conditions--simply order the model that fits the needs of your particular make and model. Before you start the next oval track race, install the winning camshaft edge from COMP Cams.Brand: COMP Cams
Manufacturer's Part Number: 12-610-20
Part Type: Camshafts
Product Line: COMP Cams Oval Track Camshafts
HP Direct Part Number: CCA-12-610-20
UPC: 036584178002
Cam Style: Solid flat tappet
Camshaft Use: Drag race
Basic Operating RPM Range: 3,500-6,800
Intake Duration at 050 inch Lift: 255
Exhaust Duration at 050 inch Lift: 266
Duration at 050 inch Lift: 255 int./266 exh.
Advertised Intake Duration: 290
Advertised Exhaust Duration: 304
Advertised Duration: 290 int./304 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.540 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.534 in.
Valve Lift with Factory Rocker Arm Ratio: 0.540 int./0.534 exh.
Lobe Separation (degrees): 104
Camshaft Gear Attachment: 3-bolt
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 290B-4
Valve Springs Required: Yes
Quantity: Sold individually.
