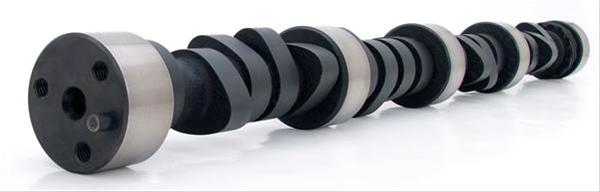

COMP Cams Oval Track Camshafts 12-609-20

COMP Cams oval track camshafts are designed specifically for racing applications. They are available to complement a variety of engine configurations, track lengths, and conditions--simply order the model that fits the needs of your particular make and model. Before you start the next oval track race, install the winning camshaft edge from COMP Cams.Brand: COMP Cams
Manufacturer's Part Number: 12-609-20
Part Type: Camshafts
Product Line: COMP Cams Oval Track Camshafts
HP Direct Part Number: CCA-12-609-20
UPC: 036584177999
Cam Style: Solid flat tappet
Camshaft Use: Drag race
Basic Operating RPM Range: 3,000-6,500
Intake Duration at 050 inch Lift: 250
Exhaust Duration at 050 inch Lift: 260
Duration at 050 inch Lift: 250 int./260 exh.
Advertised Intake Duration: 285
Advertised Exhaust Duration: 295
Advertised Duration: 285 int./295 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.532 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.555 in.
Valve Lift with Factory Rocker Arm Ratio: 0.532 int./0.555 exh.
Lobe Separation (degrees): 106
Camshaft Gear Attachment: 3-bolt
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 285B-6
Valve Springs Required: Yes
Quantity: Sold individually.
