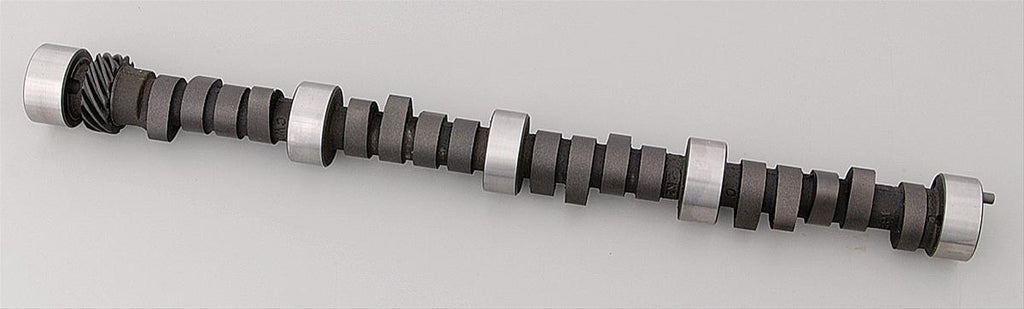

COMP Cams Nitrous HP Camshafts 12-568-4

COMP Cams Nitrous HP camshafts are designed to work with your nitrous system to get more power from your engine. Their unique intake lobes allow your engine cylinders to fill better, for more complete combustion. Meanwhile, their exhaust lobes are spread to decrease overlap and ensure maximum scavenging of your combustion chamber. The bottom line is an increased power boost from your nitrous system, without any loss of throttle response or torque in street applications.Brand: COMP Cams
Manufacturer's Part Number: 12-568-4
Part Type: Camshafts
Product Line: COMP Cams Nitrous HP Camshafts
HP Direct Part Number: CCA-12-568-4
UPC: 036584023869
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,800-6,800
Intake Duration at 050 inch Lift: 240
Exhaust Duration at 050 inch Lift: 253
Duration at 050 inch Lift: 240 int./253 exh.
Advertised Intake Duration: 284
Advertised Exhaust Duration: 305
Advertised Duration: 284 int./305 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.507 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.525 in.
Valve Lift with Factory Rocker Arm Ratio: 0.507 int./0.525 exh.
Lobe Separation (degrees): 113
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS NX284H-13
Valve Springs Required: Yes
Quantity: Sold individually.
