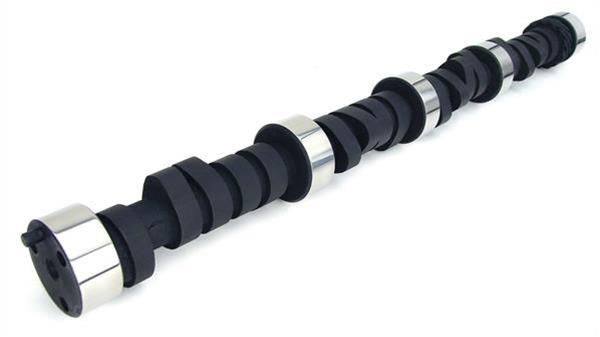

COMP Cams Nitrous HP Camshafts 11-564-4

COMP Cams Nitrous HP camshafts are designed to work with your nitrous system to get more power from your engine. Their unique intake lobes allow your engine cylinders to fill better, for more complete combustion. Meanwhile, their exhaust lobes are spread to decrease overlap and ensure maximum scavenging of your combustion chamber. The bottom line is an increased power boost from your nitrous system, without any loss of throttle response or torque in street applications.Brand: COMP Cams
Manufacturer's Part Number: 11-564-4
Part Type: Camshafts
Product Line: COMP Cams Nitrous HP Camshafts
HP Direct Part Number: CCA-11-564-4
UPC: 036584038733
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,000-6,500
Intake Duration at 050 inch Lift: 230
Exhaust Duration at 050 inch Lift: 244
Duration at 050 inch Lift: 230 int./244 exh.
Advertised Intake Duration: 274
Advertised Exhaust Duration: 292
Advertised Duration: 274 int./292 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.553 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.568 in.
Valve Lift with Factory Rocker Arm Ratio: 0.553 int./0.568 exh.
Lobe Separation (degrees): 113
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB NX 274H-13
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Designed for 100-150 HP shot of nitrous.
