Description
Brand: COMP Cams
Manufacturer's Part Number: 31-768-9
Part Type: Camshafts

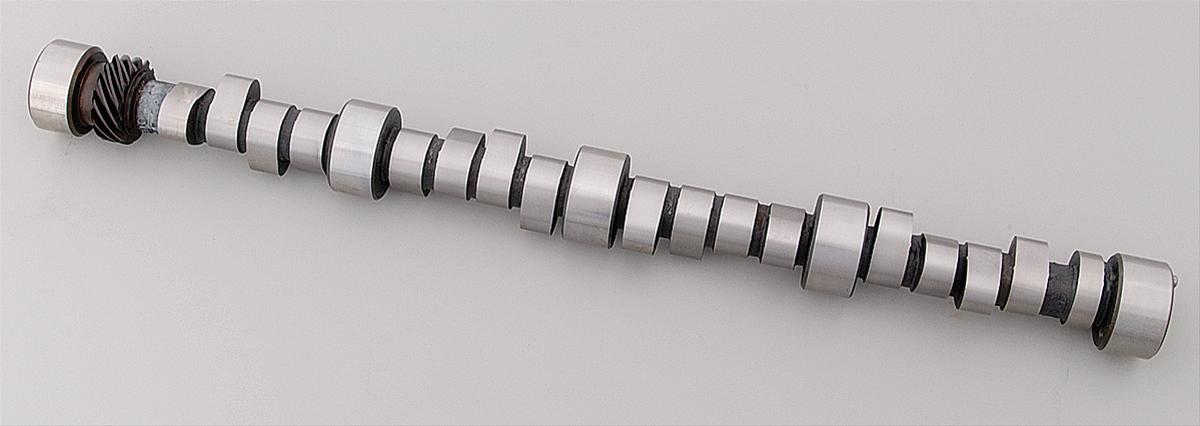

Product Line: COMP Cams Magnum Solid Roller Camshafts
Automotive Fittings Part Number: CCA-31-768-9
UPC: 036584670575
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 4,500-7,500
Intake Duration at 050 inch Lift: 273
Exhaust Duration at 050 inch Lift: 273
Duration at 050 inch Lift: 273 int./273 exh.
Advertised Intake Duration: 306
Advertised Exhaust Duration: 306
Advertised Duration: 306 int./306 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.640 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.640 in.
Valve Lift with Factory Rocker Arm Ratio: 0.640 int./0.640 exh.
Lobe Separation (degrees): 104
Intake Valve Lash: 0.026 in.
Exhaust Valve Lash: 0.028 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 306AR-4
Valve Springs Required: Yes
Quantity: Sold individually.
Description:
COMP Cams Magnum solid roller camshafts are designed for everyone from the serious street performance enthusiast—to the all-out competition drag racer. Whether you're driving a street rod or show car with power accessories … or a super gas, super competition car on alcohol, one of these cams will fit your engine's needs.
Manufacturer's Part Number: 31-768-9
Part Type: Camshafts
Product Line: COMP Cams Magnum Solid Roller Camshafts
Automotive Fittings Part Number: CCA-31-768-9
UPC: 036584670575
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 4,500-7,500
Intake Duration at 050 inch Lift: 273
Exhaust Duration at 050 inch Lift: 273
Duration at 050 inch Lift: 273 int./273 exh.
Advertised Intake Duration: 306
Advertised Exhaust Duration: 306
Advertised Duration: 306 int./306 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.640 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.640 in.
Valve Lift with Factory Rocker Arm Ratio: 0.640 int./0.640 exh.
Lobe Separation (degrees): 104
Intake Valve Lash: 0.026 in.
Exhaust Valve Lash: 0.028 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 306AR-4
Valve Springs Required: Yes
Quantity: Sold individually.
Description:
COMP Cams Magnum solid roller camshafts are designed for everyone from the serious street performance enthusiast—to the all-out competition drag racer. Whether you're driving a street rod or show car with power accessories … or a super gas, super competition car on alcohol, one of these cams will fit your engine's needs.
