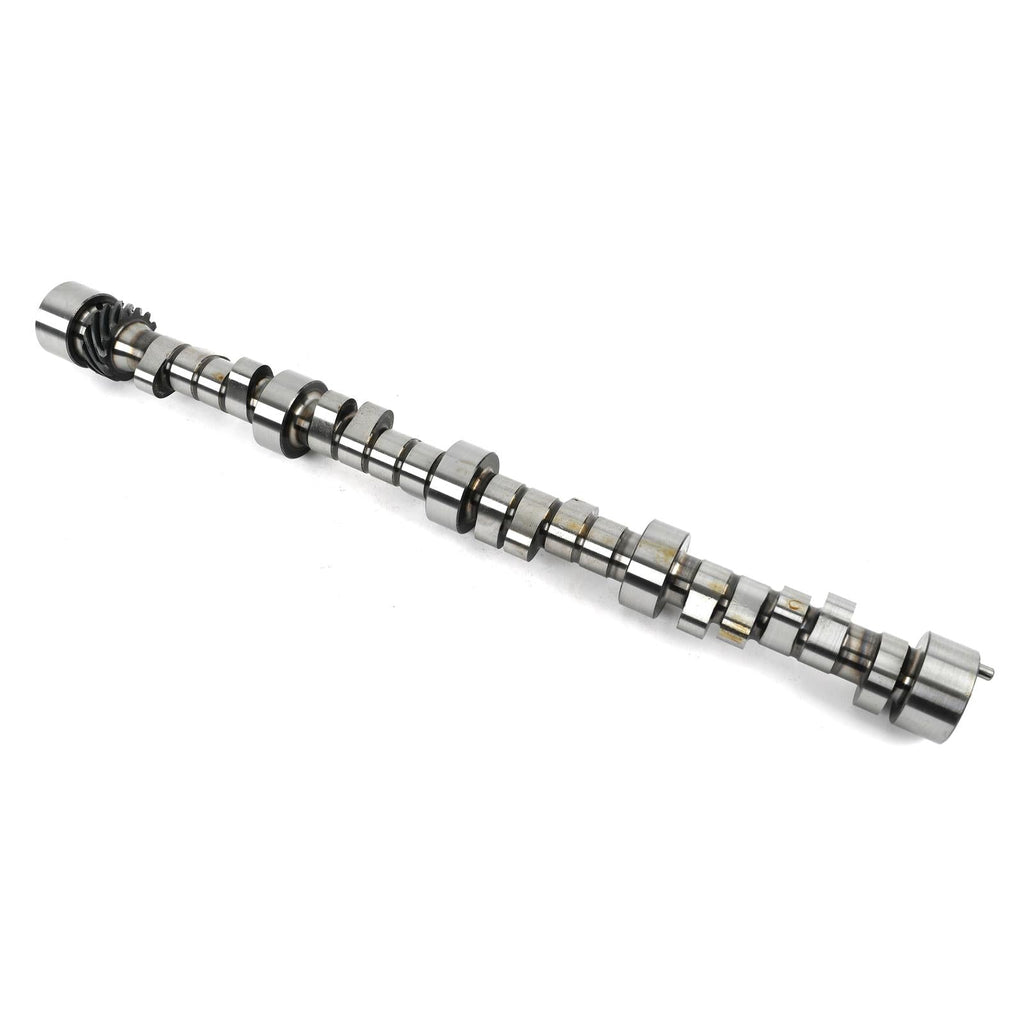

COMP Cams Magnum Solid Roller Camshafts 12-702-8

COMP Cams Magnum solid roller camshafts are designed for everyone from the serious street performance enthusiast—to the all-out competition drag racer. Whether you're driving a street rod or show car with power accessories … or a super gas, super competition car on alcohol, one of these cams will fit your engine's needs.Brand: COMP Cams
Manufacturer's Part Number: 12-702-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Solid Roller Camshafts
HP Direct Part Number: CCA-12-702-8
UPC: 036584590040
Cam Style: Solid roller, Retro-fit
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,500-6,500
Intake Duration at 050 inch Lift: 236
Exhaust Duration at 050 inch Lift: 236
Duration at 050 inch Lift: 236 int./236 exh.
Advertised Intake Duration: 280
Advertised Exhaust Duration: 280
Advertised Duration: 280 int./280 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.550 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.550 in.
Valve Lift with Factory Rocker Arm Ratio: 0.550 int./0.550 exh.
Lobe Separation (degrees): 110
Intake Valve Lash: 0.020 in.
Exhaust Valve Lash: 0.020 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 280A-R10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Retro-fit: Designed for early non-roller blocks. Requires thrust button and wear plate.
