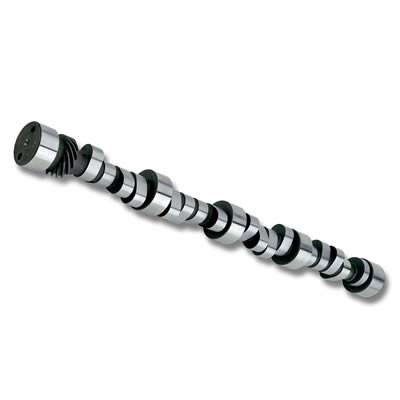

COMP Cams Magnum Solid Camshafts 11-682-47

COMP Cams Magnum solid lifter camshafts are specifically designed for the street enthusiast looking for more power and that Pro Street sound. Whether your choice would be the 270s with low-speed torque and noticeable idle, or the 306s for larger cubic inch engines with tremendous high-rpm power and radical idle, one of these Magnum series cams will fit your engine's needs.Brand: COMP Cams
Manufacturer's Part Number: 11-682-47
Part Type: Camshafts
Product Line: COMP Cams Magnum Solid Camshafts
HP Direct Part Number: CCA-11-682-47
UPC: 036584084181
Cam Style: Solid flat tappet
Camshaft Use: Drag race
Basic Operating RPM Range: 4,200-7,200
Intake Duration at 050 inch Lift: 270
Exhaust Duration at 050 inch Lift: 276
Duration at 050 inch Lift: 270 int./276 exh.
Advertised Intake Duration: 310
Advertised Exhaust Duration: 314
Advertised Duration: 310 int./314 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.638 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.631 in.
Valve Lift with Factory Rocker Arm Ratio: 0.638 int./0.631 exh.
Lobe Separation (degrees): 108
Intake Valve Lash: 0.028 in.
Exhaust Valve Lash: 0.030 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB 47S 310B-8
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Special 4/7 swap firing order.
