Description

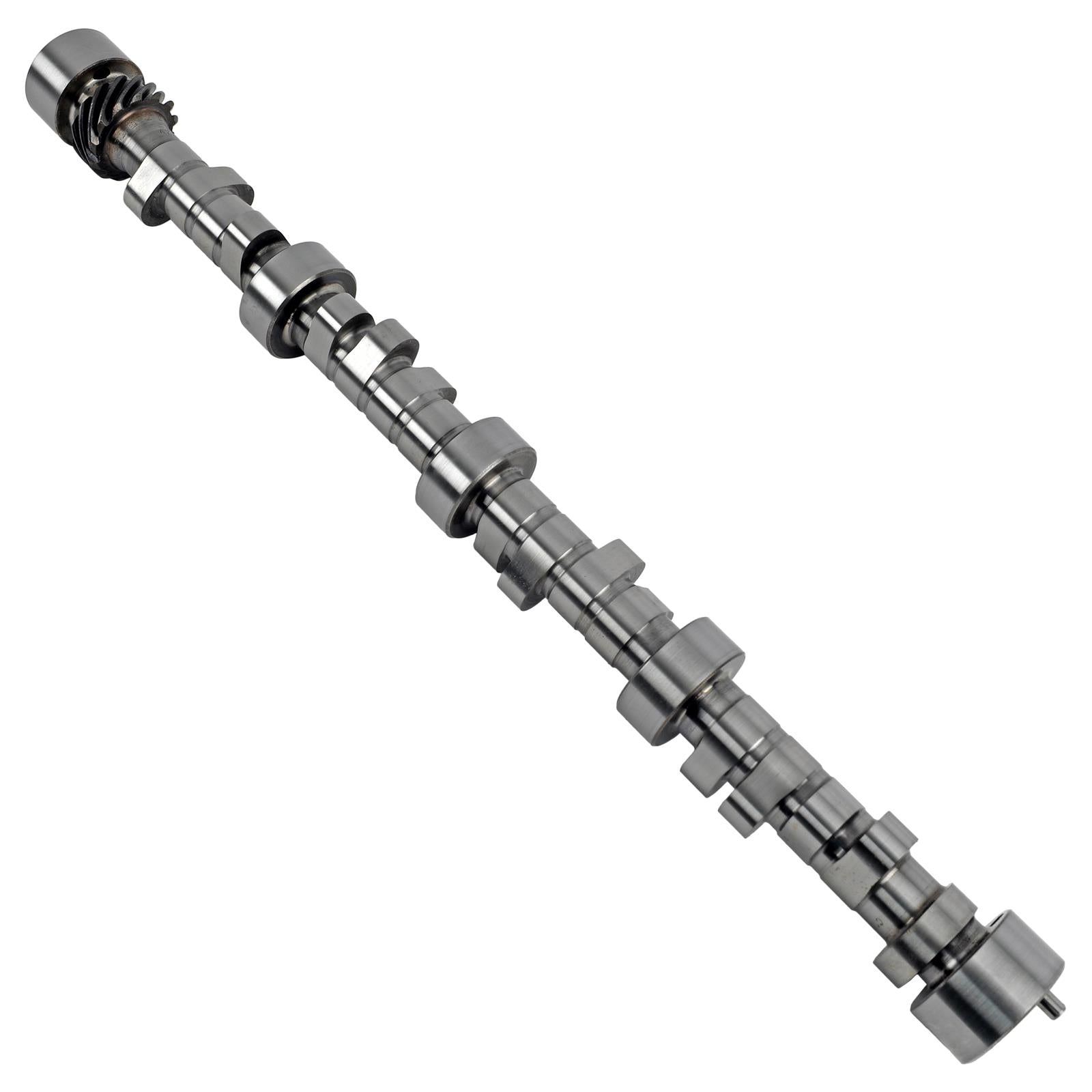

COMP Cams Magnum retrofit camshafts are designed for everyone from the serious street performance enthusiast to the all-out competition drag racer. Whether you're driving a street rod, show car with power accessories, a super gas, or super competition car on alcohol, COMP Cams will fit your engine's needs.Brand: COMP Cams
Manufacturer's Part Number: 12-450-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Retrofit Camshafts
HP Direct Part Number: CCA-12-450-8
UPC: 036584700289
Cam Style: Hydraulic roller, Retro-fit
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,500-6,000
Intake Duration at 050 inch Lift: 230
Exhaust Duration at 050 inch Lift: 230
Duration at 050 inch Lift: 230 int./230 exh.
Advertised Intake Duration: 286
Advertised Exhaust Duration: 286
Advertised Duration: 286 int./286 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Valve Lift with Factory Rocker Arm Ratio: 0.560 int./0.560 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 286H-R10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Retro-fit: Designed for early non-roller blocks. Requires thrust button and wear plate.
Manufacturer's Part Number: 12-450-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Retrofit Camshafts
HP Direct Part Number: CCA-12-450-8
UPC: 036584700289
Cam Style: Hydraulic roller, Retro-fit
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,500-6,000
Intake Duration at 050 inch Lift: 230
Exhaust Duration at 050 inch Lift: 230
Duration at 050 inch Lift: 230 int./230 exh.
Advertised Intake Duration: 286
Advertised Exhaust Duration: 286
Advertised Duration: 286 int./286 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Valve Lift with Factory Rocker Arm Ratio: 0.560 int./0.560 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 286H-R10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Retro-fit: Designed for early non-roller blocks. Requires thrust button and wear plate.
