Description

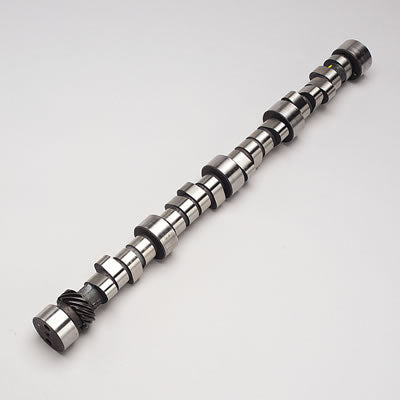

COMP Cams Magnum retrofit camshafts are designed for everyone from the serious street performance enthusiast to the all-out competition drag racer. Whether you're driving a street rod, show car with power accessories, a super gas, or super competition car on alcohol, COMP Cams will fit your engine's needs.Brand: COMP Cams
Manufacturer's Part Number: 11-430-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Retrofit Camshafts
HP Direct Part Number: CCA-11-430-8
UPC: 036584780168
Cam Style: Hydraulic roller, Retro-fit
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,000-5,500
Intake Duration at 050 inch Lift: 224
Exhaust Duration at 050 inch Lift: 224
Duration at 050 inch Lift: 224 int./224 exh.
Advertised Intake Duration: 280
Advertised Exhaust Duration: 280
Advertised Duration: 280 int./280 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.566 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.566 in.
Valve Lift with Factory Rocker Arm Ratio: 0.566 int./0.566 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB 280H-R10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Requires thrust button and wear plate.
Manufacturer's Part Number: 11-430-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Retrofit Camshafts
HP Direct Part Number: CCA-11-430-8
UPC: 036584780168
Cam Style: Hydraulic roller, Retro-fit
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,000-5,500
Intake Duration at 050 inch Lift: 224
Exhaust Duration at 050 inch Lift: 224
Duration at 050 inch Lift: 224 int./224 exh.
Advertised Intake Duration: 280
Advertised Exhaust Duration: 280
Advertised Duration: 280 int./280 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.566 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.566 in.
Valve Lift with Factory Rocker Arm Ratio: 0.566 int./0.566 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB 280H-R10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Requires thrust button and wear plate.
