Description

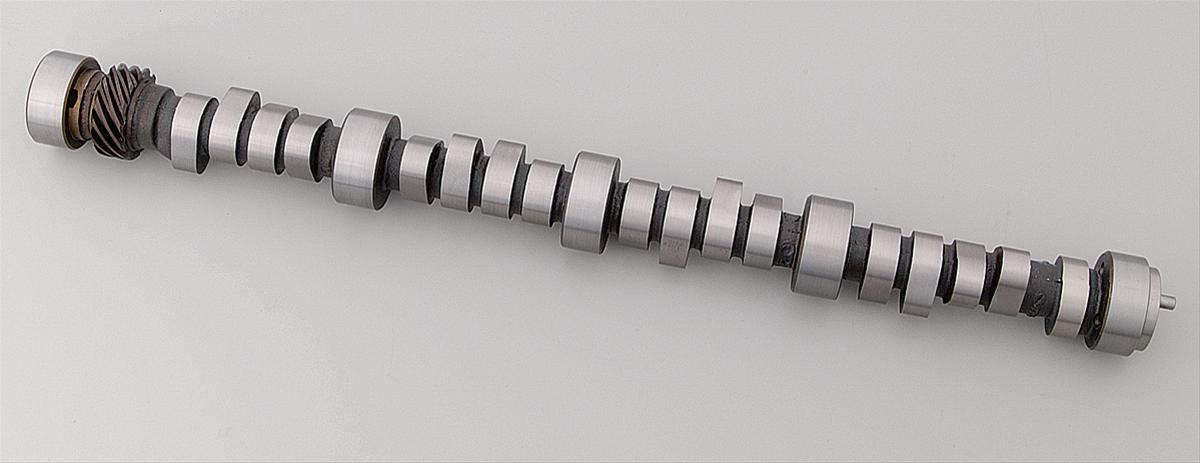

COMP Cams Magnum hydraulic roller camshafts are designed for everyone from the serious street performance enthusiast to the all-out competition drag racer. Whether you're driving a street rod or show car with power accessories, or a super gas, super competition car on alcohol, one of these cams will fit your engine's needs.Brand: COMP Cams
Manufacturer's Part Number: 56-430-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Roller Camshafts
HP Direct Part Number: CCA-56-430-8
UPC: 036584063377
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street
Camshaft Manufacturers Description: Limited high performance with rough idle. Needs intake, headers, 2500+ stall and 3.73 to 4.10 gears. Adjustable valvetrain is required. For carbureted conversion applications.
Basic Operating RPM Range: 2,000-5,500
Intake Duration at 050 inch Lift: 224
Exhaust Duration at 050 inch Lift: 224
Duration at 050 inch Lift: 224 int./224 exh.
Advertised Intake Duration: 280
Advertised Exhaust Duration: 280
Advertised Duration: 280 int./280 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.525 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.525 in.
Valve Lift with Factory Rocker Arm Ratio: 0.525 int./0.525 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 280HR
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: For use on balance shaft-equipped engines.
Manufacturer's Part Number: 56-430-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Roller Camshafts
HP Direct Part Number: CCA-56-430-8
UPC: 036584063377
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street
Camshaft Manufacturers Description: Limited high performance with rough idle. Needs intake, headers, 2500+ stall and 3.73 to 4.10 gears. Adjustable valvetrain is required. For carbureted conversion applications.
Basic Operating RPM Range: 2,000-5,500
Intake Duration at 050 inch Lift: 224
Exhaust Duration at 050 inch Lift: 224
Duration at 050 inch Lift: 224 int./224 exh.
Advertised Intake Duration: 280
Advertised Exhaust Duration: 280
Advertised Duration: 280 int./280 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.525 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.525 in.
Valve Lift with Factory Rocker Arm Ratio: 0.525 int./0.525 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 280HR
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: For use on balance shaft-equipped engines.
