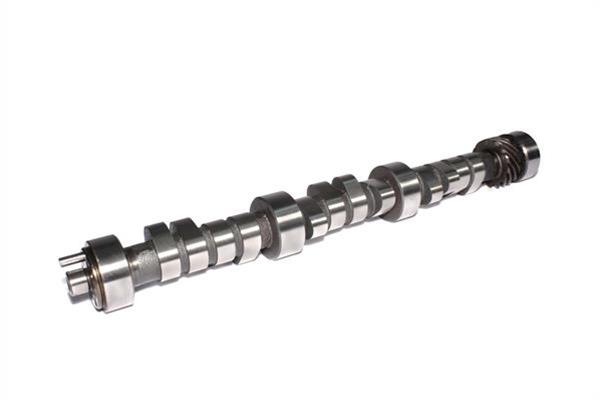

COMP Cams Magnum hydraulic roller camshafts are designed for everyone from the serious street performance enthusiast to the all-out competition drag racer. Whether you're driving a street rod or show car with power accessories, or a super gas, super competition car on alcohol, one of these cams will fit your engine's needs.Brand: COMP Cams
Manufacturer's Part Number: 56-420-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Roller Camshafts
HP Direct Part Number: CCA-56-420-8
UPC: 036584063360
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street
Camshaft Manufacturers Description: Mild street performance with noticeable idle. For use with stock converter and aftermarket intake and headers. Adjustable valvetrain is required. For carbureted conversion applications.
Basic Operating RPM Range: 1,800-5,000
Intake Duration at 050 inch Lift: 215
Exhaust Duration at 050 inch Lift: 215
Duration at 050 inch Lift: 215 int./215 exh.
Advertised Intake Duration: 270
Advertised Exhaust Duration: 270
Advertised Duration: 270 int./270 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.500 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.500 in.
Valve Lift with Factory Rocker Arm Ratio: 0.500 int./0.500 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: C6 270HR-10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: For use on balance shaft-equipped engines.
Manufacturer's Part Number: 56-420-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Roller Camshafts
HP Direct Part Number: CCA-56-420-8
UPC: 036584063360
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street
Camshaft Manufacturers Description: Mild street performance with noticeable idle. For use with stock converter and aftermarket intake and headers. Adjustable valvetrain is required. For carbureted conversion applications.
Basic Operating RPM Range: 1,800-5,000
Intake Duration at 050 inch Lift: 215
Exhaust Duration at 050 inch Lift: 215
Duration at 050 inch Lift: 215 int./215 exh.
Advertised Intake Duration: 270
Advertised Exhaust Duration: 270
Advertised Duration: 270 int./270 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.500 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.500 in.
Valve Lift with Factory Rocker Arm Ratio: 0.500 int./0.500 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: C6 270HR-10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: For use on balance shaft-equipped engines.
