Description
Brand: COMP Cams
Manufacturer's Part Number: 35-314-8
Part Type: Camshafts

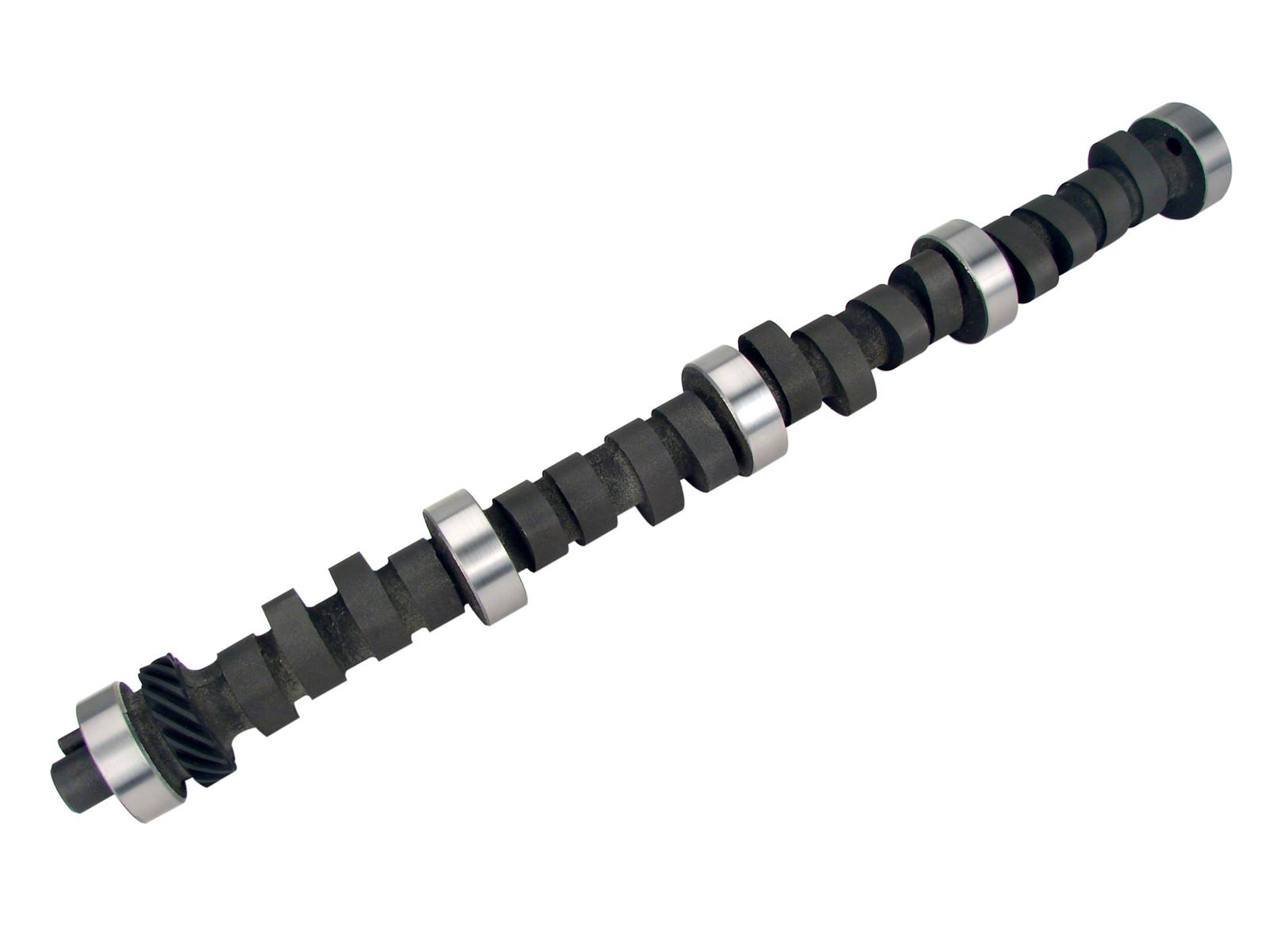

Product Line: COMP Cams Magnum Hydraulic Roller Camshafts
Automotive Fittings Part Number: CCA-35-314-8
UPC: 036584017295
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,200-6,200
Intake Duration at 050 inch Lift: 224
Exhaust Duration at 050 inch Lift: 230
Duration at 050 inch Lift: 224 int./230 exh.
Advertised Intake Duration: 280
Advertised Exhaust Duration: 286
Advertised Duration: 280 int./286 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.598 in.
Valve Lift with Factory Rocker Arm Ratio: 0.560 int./0.598 exh.
Lobe Separation (degrees): 112
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: FW 280H-R12
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Designed to fit EFI engines.
Description:
COMP Cams Magnum hydraulic roller camshafts are designed for everyone from the serious street performance enthusiast to the all-out competition drag racer. Whether you're driving a street rod or show car with power accessories, or a super gas, super competition car on alcohol, one of these cams will fit your engine's needs.
Manufacturer's Part Number: 35-314-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Roller Camshafts
Automotive Fittings Part Number: CCA-35-314-8
UPC: 036584017295
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,200-6,200
Intake Duration at 050 inch Lift: 224
Exhaust Duration at 050 inch Lift: 230
Duration at 050 inch Lift: 224 int./230 exh.
Advertised Intake Duration: 280
Advertised Exhaust Duration: 286
Advertised Duration: 280 int./286 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.598 in.
Valve Lift with Factory Rocker Arm Ratio: 0.560 int./0.598 exh.
Lobe Separation (degrees): 112
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: FW 280H-R12
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Designed to fit EFI engines.
Description:
COMP Cams Magnum hydraulic roller camshafts are designed for everyone from the serious street performance enthusiast to the all-out competition drag racer. Whether you're driving a street rod or show car with power accessories, or a super gas, super competition car on alcohol, one of these cams will fit your engine's needs.
