Description

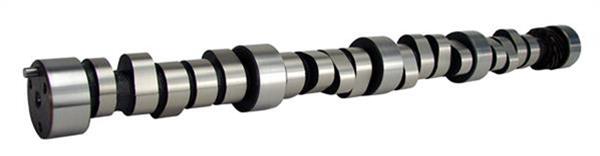

COMP Cams Magnum hydraulic roller camshafts are designed for everyone from the serious street performance enthusiast to the all-out competition drag racer. Whether you're driving a street rod or show car with power accessories, or a super gas, super competition car on alcohol, one of these cams will fit your engine's needs.Brand: COMP Cams
Manufacturer's Part Number: 11-420-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Roller Camshafts
HP Direct Part Number: CCA-11-420-8
UPC: 036584780151
Cam Style: Hydraulic roller, Retro-fit
Camshaft Use: Street/Strip
Basic Operating RPM Range: 1,800-5,000
Intake Duration at 050 inch Lift: 215
Exhaust Duration at 050 inch Lift: 215
Duration at 050 inch Lift: 215 int./215 exh.
Advertised Intake Duration: 270
Advertised Exhaust Duration: 270
Advertised Duration: 270 int./270 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.566 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.566 in.
Valve Lift with Factory Rocker Arm Ratio: 0.566 int./0.566 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB 270H-R10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Requires thrust button and wear plate.
Manufacturer's Part Number: 11-420-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Roller Camshafts
HP Direct Part Number: CCA-11-420-8
UPC: 036584780151
Cam Style: Hydraulic roller, Retro-fit
Camshaft Use: Street/Strip
Basic Operating RPM Range: 1,800-5,000
Intake Duration at 050 inch Lift: 215
Exhaust Duration at 050 inch Lift: 215
Duration at 050 inch Lift: 215 int./215 exh.
Advertised Intake Duration: 270
Advertised Exhaust Duration: 270
Advertised Duration: 270 int./270 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.566 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.566 in.
Valve Lift with Factory Rocker Arm Ratio: 0.566 int./0.566 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB 270H-R10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Requires thrust button and wear plate.
