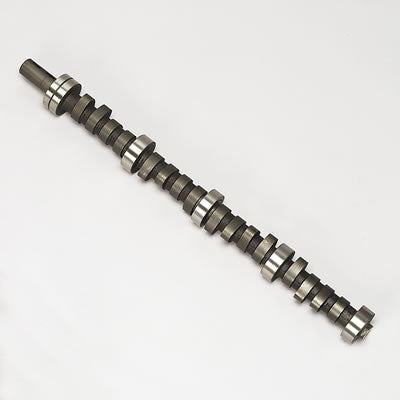

COMP Cams Magnum Hydraulic Camshafts 32-238-4

Designed for hot street/strip cars, COMP Cams Magnum series cams require a higher compression ratio, rear-end gear ratio, and stall torque converter than stock. With a very aggressive profile, these Magnum hydraulic camshafts provide maximum top-end performance for your high performance car.Brand: COMP Cams
Manufacturer's Part Number: 32-238-4
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Camshafts
HP Direct Part Number: CCA-32-238-4
UPC: 036584641001
Cam Style: Solid flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,000-6,000
Intake Duration at 050 inch Lift: 236
Exhaust Duration at 050 inch Lift: 236
Duration at 050 inch Lift: 236 int./236 exh.
Advertised Intake Duration: 282
Advertised Exhaust Duration: 282
Advertised Duration: 282 int./282 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.570 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.570 in.
Valve Lift with Factory Rocker Arm Ratio: 0.570 int./0.570 exh.
Lobe Separation (degrees): 110
Intake Valve Lash: 0.022 in.
Exhaust Valve Lash: 0.022 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 282S
Valve Springs Required: Yes
Quantity: Sold individually.
