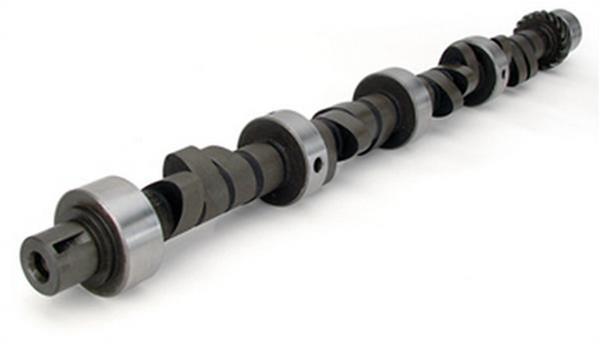

COMP Cams Magnum Hydraulic Camshafts 23-225-4

Designed for hot street/strip cars, COMP Cams Magnum series cams require a higher compression ratio, rear-end gear ratio, and stall torque converter than stock. With a very aggressive profile, these Magnum hydraulic camshafts provide maximum top-end performance for your high performance car.Brand: COMP Cams
Manufacturer's Part Number: 23-225-4
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Camshafts
HP Direct Part Number: CCA-23-225-4
UPC: 036584126515
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,300-6,500
Intake Duration at 050 inch Lift: 240
Exhaust Duration at 050 inch Lift: 246
Duration at 050 inch Lift: 240 int./246 exh.
Advertised Intake Duration: 284
Advertised Exhaust Duration: 296
Advertised Duration: 284 int./296 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.507 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.510 in.
Valve Lift with Factory Rocker Arm Ratio: 0.507 int./0.510 exh.
Lobe Separation (degrees): 110
Camshaft Gear Attachment: 3-bolt
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: XE284H-10
Valve Springs Required: Yes
Quantity: Sold individually.
