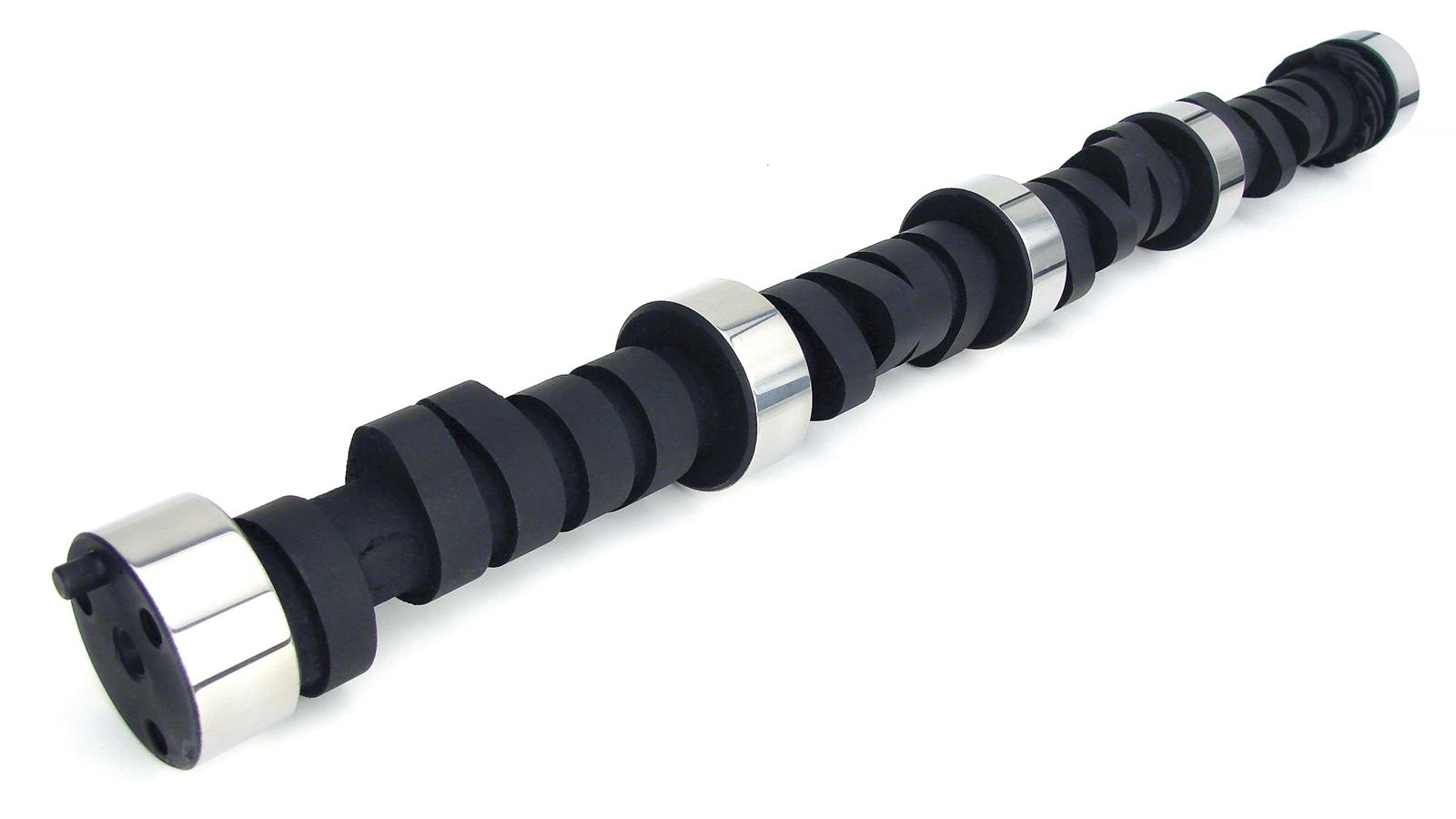

Designed for hot street/strip cars, COMP Cams Magnum series cams require a higher compression ratio, rear-end gear ratio, and stall torque converter than stock. With a very aggressive profile, these Magnum hydraulic camshafts provide maximum top-end performance for your high performance car.Brand: COMP Cams
Manufacturer's Part Number: 12-326-4
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Camshafts
HP Direct Part Number: CCA-12-326-4
UPC: 036584520474
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,200-6,200
Intake Duration at 050 inch Lift: 236
Exhaust Duration at 050 inch Lift: 236
Duration at 050 inch Lift: 236 int./236 exh.
Advertised Intake Duration: 286
Advertised Exhaust Duration: 286
Advertised Duration: 286 int./286 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.490 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.490 in.
Valve Lift with Factory Rocker Arm Ratio: 0.490 int./0.490 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 286H-10
Valve Springs Required: Yes
Quantity: Sold individually.
Manufacturer's Part Number: 12-326-4
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Camshafts
HP Direct Part Number: CCA-12-326-4
UPC: 036584520474
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,200-6,200
Intake Duration at 050 inch Lift: 236
Exhaust Duration at 050 inch Lift: 236
Duration at 050 inch Lift: 236 int./236 exh.
Advertised Intake Duration: 286
Advertised Exhaust Duration: 286
Advertised Duration: 286 int./286 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.490 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.490 in.
Valve Lift with Factory Rocker Arm Ratio: 0.490 int./0.490 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 286H-10
Valve Springs Required: Yes
Quantity: Sold individually.
