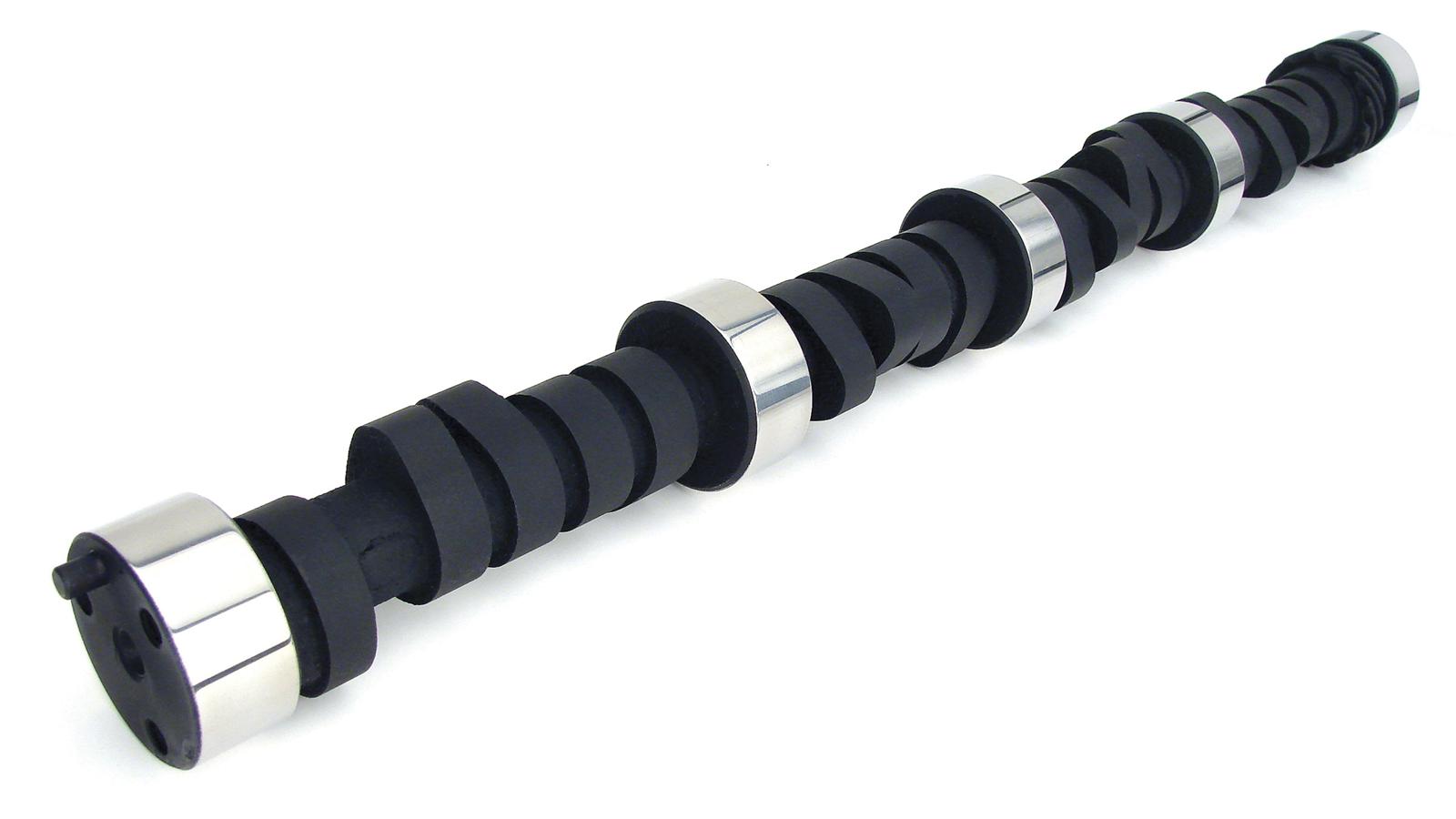

COMP Cams Magnum Hydraulic Camshafts 12-213-3

This COMP Cams Magnum hydraulic flat tappet camshaft fits 1955-1986 Gen. I small block Chevy engines, and are designed for street-and-strip applications. These cams have an advertised duration of 292/292 and lift of .501/.501. They, like all COMP Cams Magnum series cams, require a higher compression ratio, rear-end gear ratio, and stall torque converter than stock. With a very aggressive profile, these Magnum hydraulic camshafts provide maximum top-end performance for your high performance car.Brand: COMP Cams
Manufacturer's Part Number: 12-213-3
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Camshafts
HP Direct Part Number: CCA-12-213-3
UPC: 036584520054
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,500-6,500
Intake Duration at 050 inch Lift: 244
Exhaust Duration at 050 inch Lift: 244
Duration at 050 inch Lift: 244 int./244 exh.
Advertised Intake Duration: 292
Advertised Exhaust Duration: 292
Advertised Duration: 292 int./292 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.501 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.501 in.
Valve Lift with Factory Rocker Arm Ratio: 0.501 int./0.501 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 292H-10
Valve Springs Required: Yes
Quantity: Sold individually.
