Description

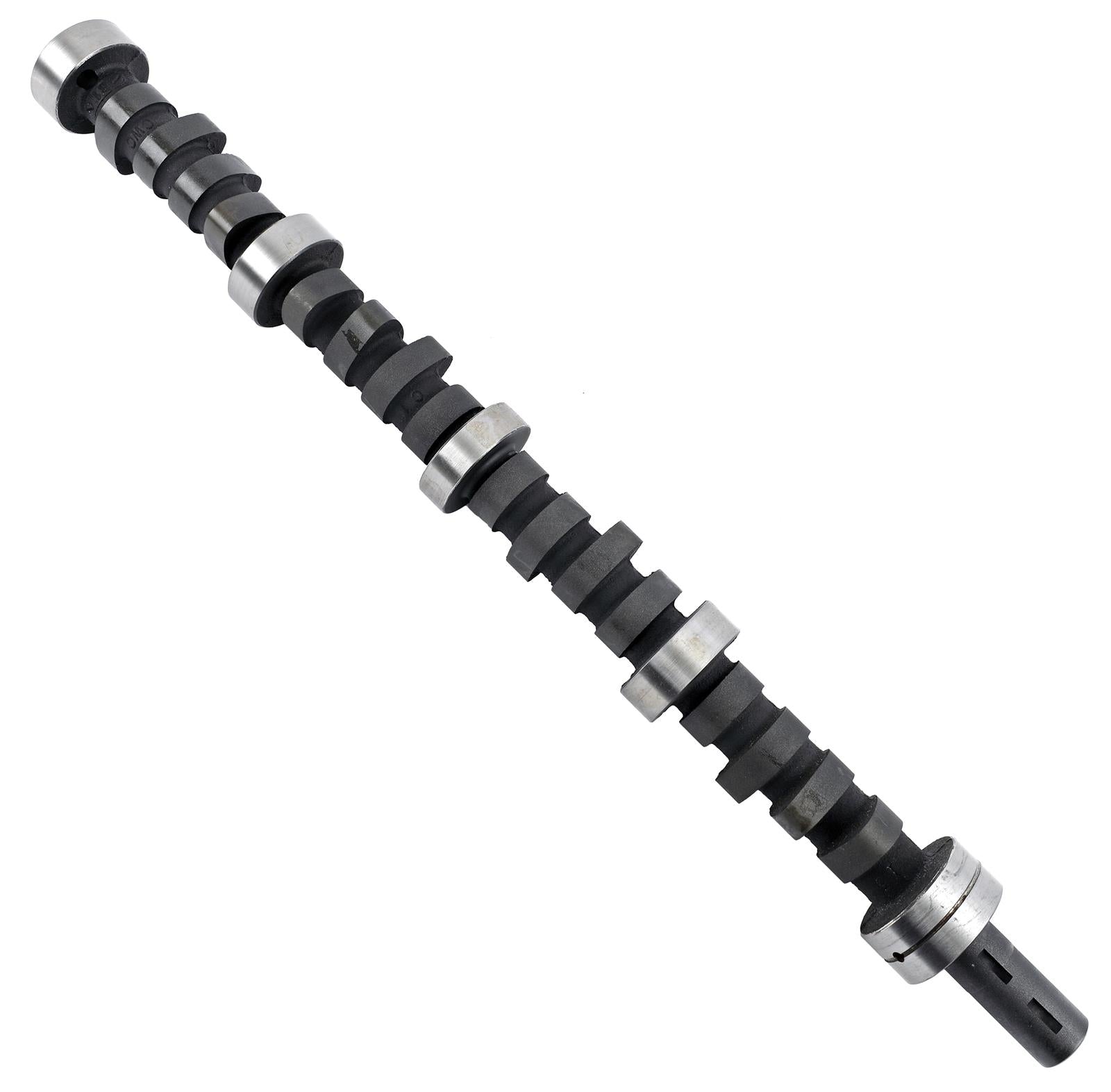

Designed for hot street/strip cars, COMP Cams Magnum series cams require a higher compression ratio, rear-end gear ratio, and stall torque converter than stock. With a very aggressive profile, these Magnum hydraulic camshafts provide maximum top-end performance for your high performance car.Brand: COMP Cams
Manufacturer's Part Number: 10-203-4
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Camshafts
HP Direct Part Number: CCA-10-203-4
UPC: 036584612285
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Camshaft Manufacturers Description: Best cam for 360-401 with stock converter. Works well with headers and aftermarket intake. Mild rough idle.
Basic Operating RPM Range: 1,800-5,800
Intake Duration at 050 inch Lift: 224
Exhaust Duration at 050 inch Lift: 224
Duration at 050 inch Lift: 224 int./224 exh.
Advertised Intake Duration: 270
Advertised Exhaust Duration: 270
Advertised Duration: 270 int./270 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.480 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.480 in.
Valve Lift with Factory Rocker Arm Ratio: 0.480 int./0.480 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: A 270H-10
Valve Springs Required: Yes
Quantity: Sold individually.
Manufacturer's Part Number: 10-203-4
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Camshafts
HP Direct Part Number: CCA-10-203-4
UPC: 036584612285
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Camshaft Manufacturers Description: Best cam for 360-401 with stock converter. Works well with headers and aftermarket intake. Mild rough idle.
Basic Operating RPM Range: 1,800-5,800
Intake Duration at 050 inch Lift: 224
Exhaust Duration at 050 inch Lift: 224
Duration at 050 inch Lift: 224 int./224 exh.
Advertised Intake Duration: 270
Advertised Exhaust Duration: 270
Advertised Duration: 270 int./270 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.480 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.480 in.
Valve Lift with Factory Rocker Arm Ratio: 0.480 int./0.480 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: A 270H-10
Valve Springs Required: Yes
Quantity: Sold individually.
